Valve Spring, Retainer and Seal
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S) DESCRIPTION
| Compressor, Valve Spring 303-300 (T87C-6565-A) |
|
| Compressor, Valve Spring 303-350 (T89P-6565-A) |
|
| Compressor, Valve Spring 303-1249 |
|
| Installer, Valve Stem Oil Seal 303-470 (T94P-6510-CH) |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (US); Motorcraft® SAE 5W-30 Super Premium Motor Oil (Canada) XO-5W30-QSP (US); CXO-5W30-LSP12 (Canada) |
WSS-M2C946-A |
-
NOTE: Apply clean engine oil to the valve stem seal.
Special Tool(s): Installer, Valve Stem Oil Seal 303-470 (T94P-6510-CH).
Install a new valve stem seal.

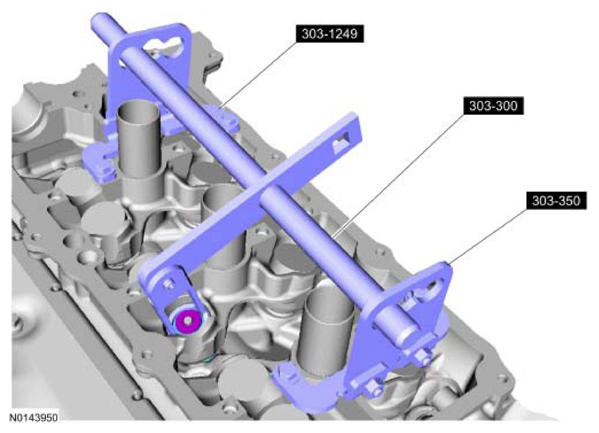

- Special Tool(s): Compressors, Valve Spring 303-300 (T87C-6565-A), 303-350 (T89P-6565-A) and 303-1249.
Install the valve spring, retainer and key.
- Install the valve tappets. Refer to VALVE TAPPETS .
