WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

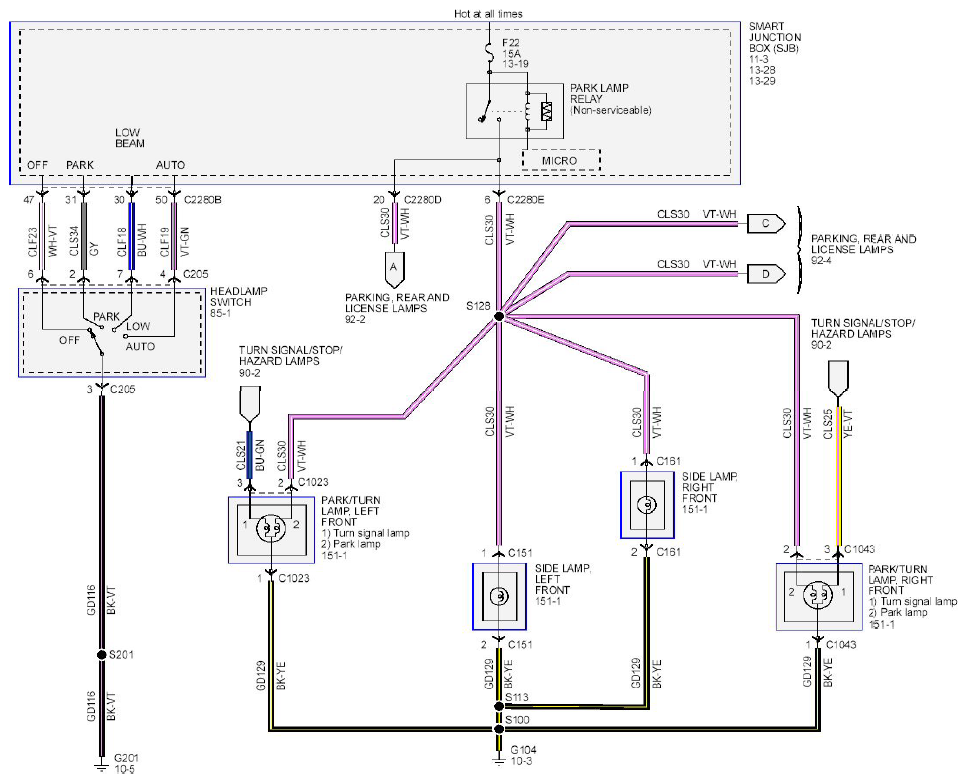

Fig 1: Parking, Rear And License Lamps - Wiring Diagram (1 Of 4)
Courtesy of FORD MOTOR CO.

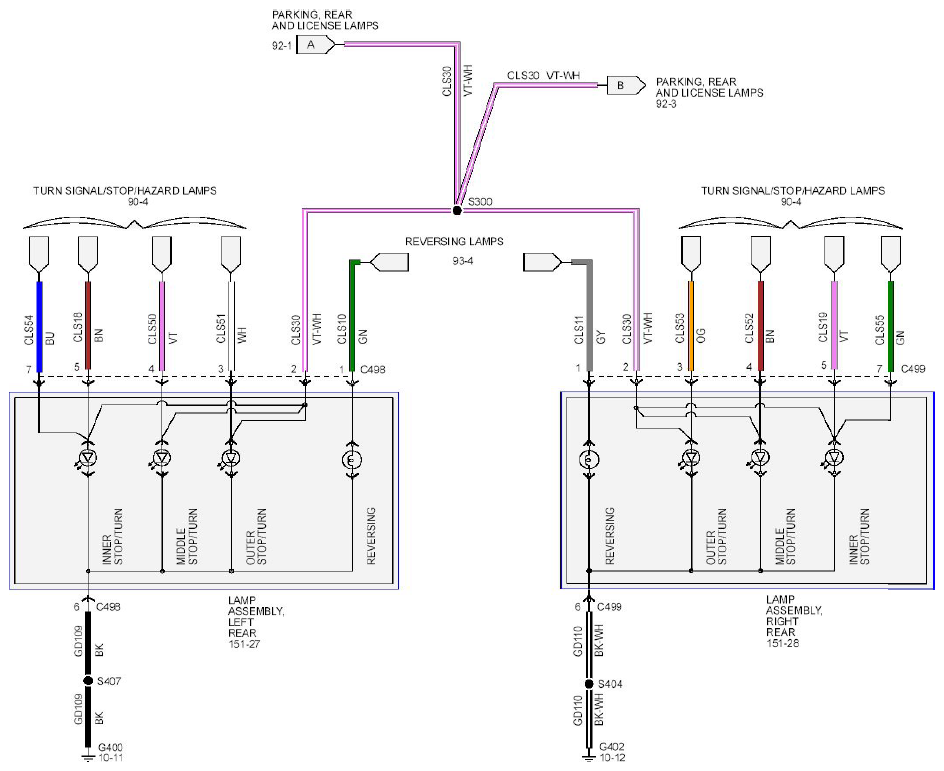

Fig 2: Parking, Rear And License Lamps - Wiring Diagram (2 Of 4)
Courtesy of FORD MOTOR CO.
Fig 3: Parking, Rear And License Lamps - Wiring Diagram (3 Of 4)
Courtesy of FORD MOTOR CO.
Fig 4: Parking, Rear And License Lamps - Wiring Diagram (4 Of 4)
