Smart Junction Box (SJB)
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

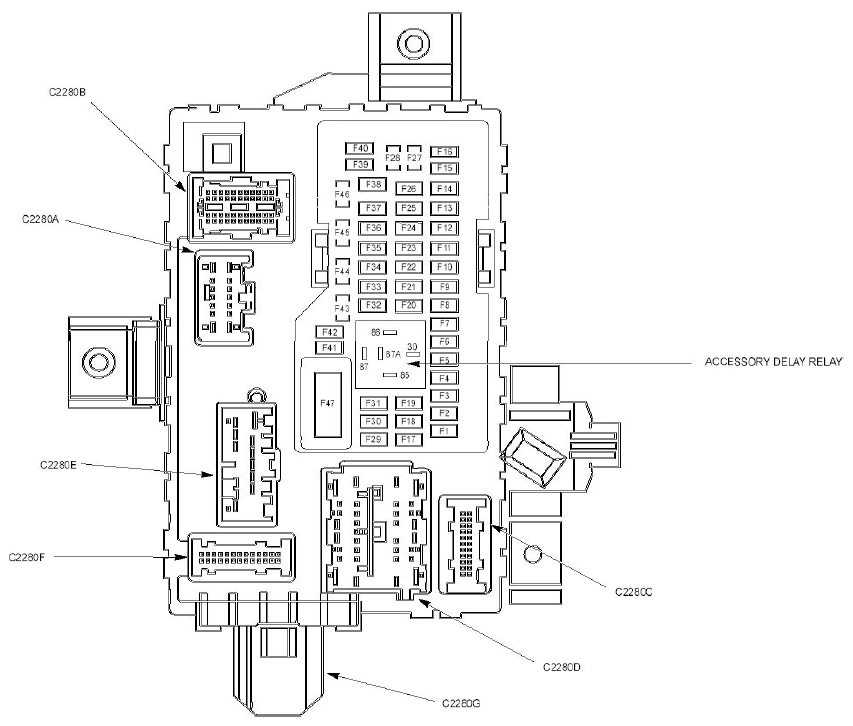

SMART JUNCTION BOX (SJB) RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Accessory Delay Relay |
SMART JUNCTION BOX FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuits protected |
|---|---|---|
| F1 | 30 | Power window motor, left rear (convertible) |
| F2 | 15 | Not used |
| F3 | 15 | Accessory Protocol Interface Module (APIM) (SYNC) |
| F4 | 30 | Power window motor, right rear (convertible) |
| F5 | 10 | Transmission shaft selector, Field Effect Transistor (FET) |
| F6 | 20 | Front park/turn lamps, Hazard flashers |
| F7 | 10 | Left low beam lamp |
| F9 | 15 | Overhead console (overhead lamps) |
| F10 | 15 | Switch Illumination, Pony projection lights |
| F11 | 10 | Overhead console (ISM) |
| F12 | 7.5 | Exterior rear view mirror switch |
| F13 | 5 | Not used |
| F14 | 10 | Front Display Interface module (FDIM), Front Controls Interface module (FCIM), Global Positioning System Module (GPSM) |
| F15 | 10 | HVAC module |
| F16 | 15 | Not used |
| F17 | 20 | Door lock actuators, Luggage compartment lid release solenoid |
| F18 | 20 | Not used |
| F19 | 25 | Not used |
| F20 | 15 | Data Link Connector (DLC) |
| F21 | 15 | Headlamp switch, Fog lamps |
| F22 | 15 | Front park/turn lamps, Front side lamps, Rear lamp assemblies, License plate lamps, Rear side lamps, Park lamp relay |
| F23 | 15 | High beam lamps, High beam relay |
| F24 | 20 | Horn, Horn relay |
| F25 | 10 | Luggage compartment lamp, Overhead console, Vanity mirror lamps Battery saver relay |
| F26 | 10 | Instrument Panel Cluster (IPC) |
| F27 | 20 | Ignition switch |
| F28 | 5 | Audio Control Module (ACM) audio mute (start) |
| F29 | 5 | Video camera (run/start) |
| F30 | 5 | In-vehicle temperature sensor |
| F31 | 10 | Restraints Control Module (RCM) |
| F32 | 10 | Parking Aid Module (PAM) |
| F33 | 10 | Engine temperature gauge (Boss Laguna), Oil Pressure gauge (Boss Laguna), Performance gauge (Boss Laguna) |
| F34 | 5 | Anti-lock Brake system (ABS) module |
| F35 | 10 | Body control module B (run/start) |
| F36 | 5 | Passive anti-theft transceiver, Instrument Panel Cluster (IPC) |
| F37 | 10 | Rear window defrost relay |
| F38 | 20 | Not used |
| F39 | 20 | Audio Control Module (ACM) |
| F40 | 20 | Not used |
| F41 | 15 | Door lock switches, Auto-dimming interior mirror unit, power window motors, Window adjust switches |
| F42 | 10 | Not used |
| F43 | 10 | Driver heated seat relay, Passenger heated seat relay |
| F44 | 10 | Not used |
| F45 | 5 | Wiper relay, Blower motor relay, Windshield wiper motor |
| F46 | 7.5 | Occupant classification Sensor Module (OCSM), Overhead console |
| F47 | 30 c.b. | Not used |
