Heated Seat Relay Box

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

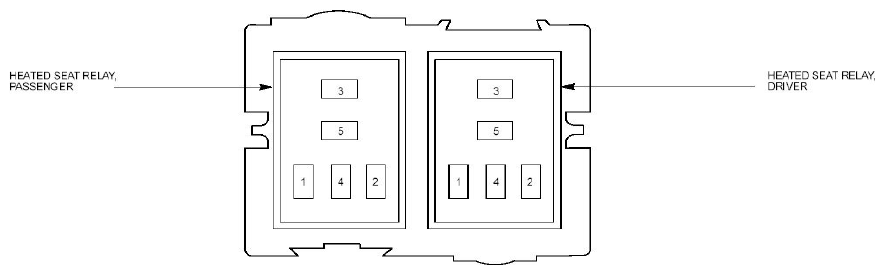

Fig 1: Heated Seat Relay Box

Courtesy of FORD MOTOR CO.

HEATED SEAT RELAY BOX RELAY IDENTIFICATION

RELAY DESCRIPTION
Heated Seat Relay, Passenger
Heated Seat Relay, Driver
