Parking, Rear And License Lamps: Notes

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

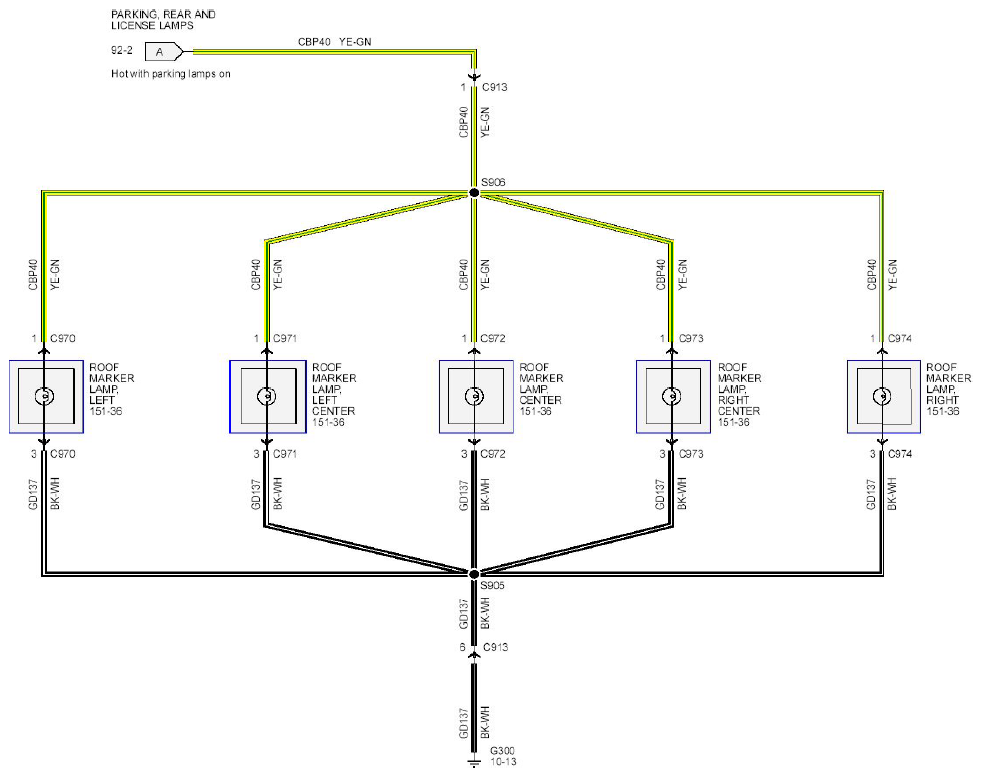

Fig 1: Parking, Rear And License Lamps - Circuit Diagram (1 Of 4)

Courtesy of FORD MOTOR CO.

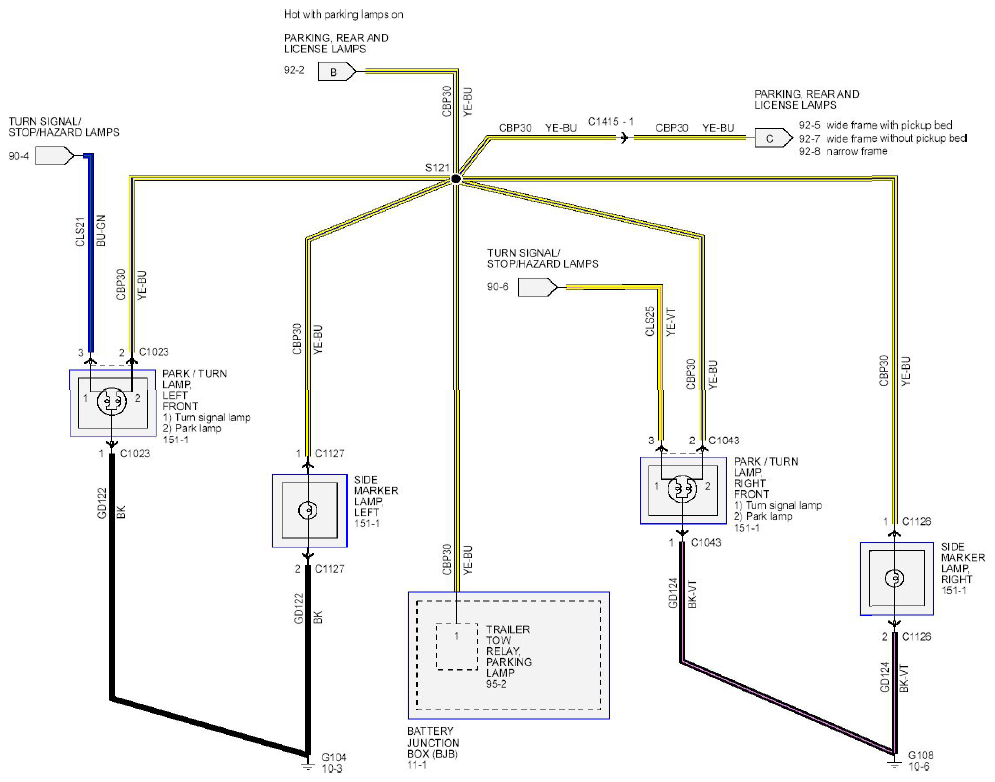

Fig 2: Parking, Rear And License Lamps - Circuit Diagram (2 Of 4)

Courtesy of FORD MOTOR CO.

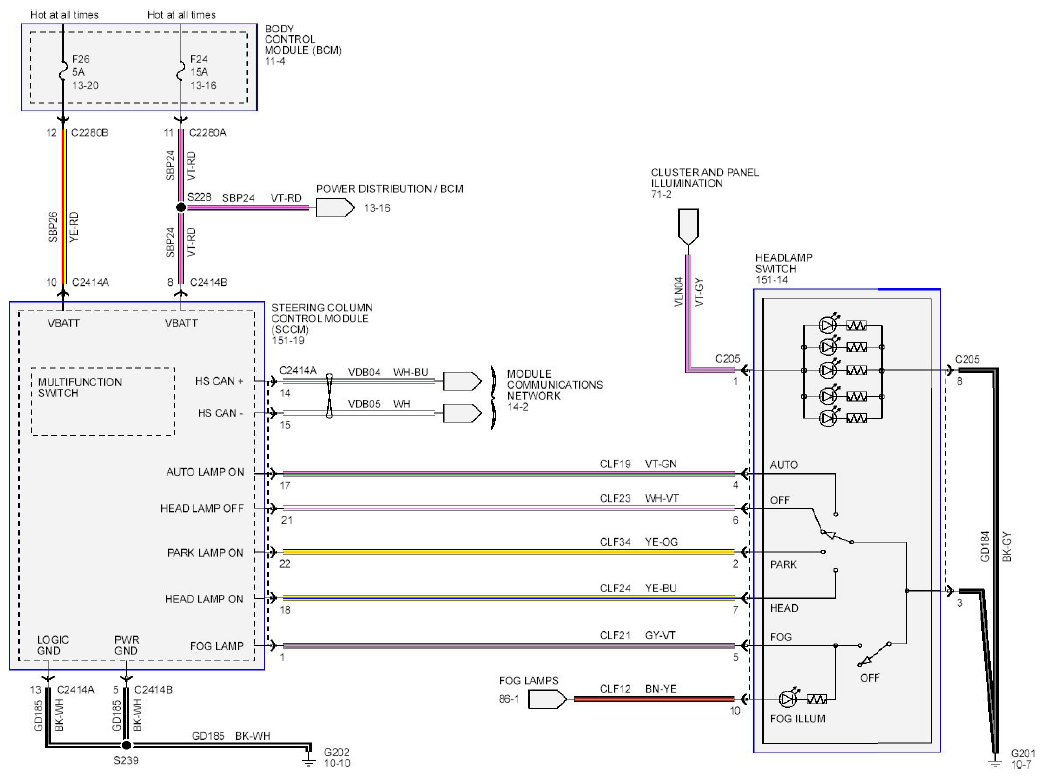

Fig 3: Parking, Rear And License Lamps - Circuit Diagram (3 Of 4)

Courtesy of FORD MOTOR CO.

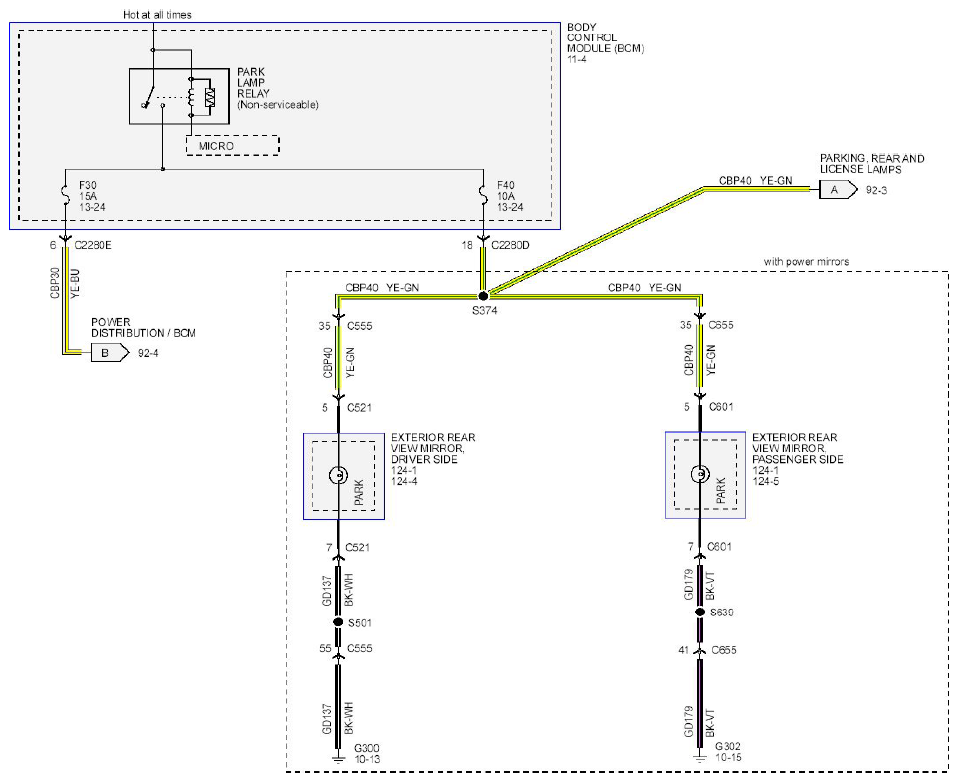

Fig 4: Parking, Rear And License Lamps - Circuit Diagram (4 Of 4)

Courtesy of FORD MOTOR CO.
