Rear View Camera Am/Fm Am/Fm/Cd

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

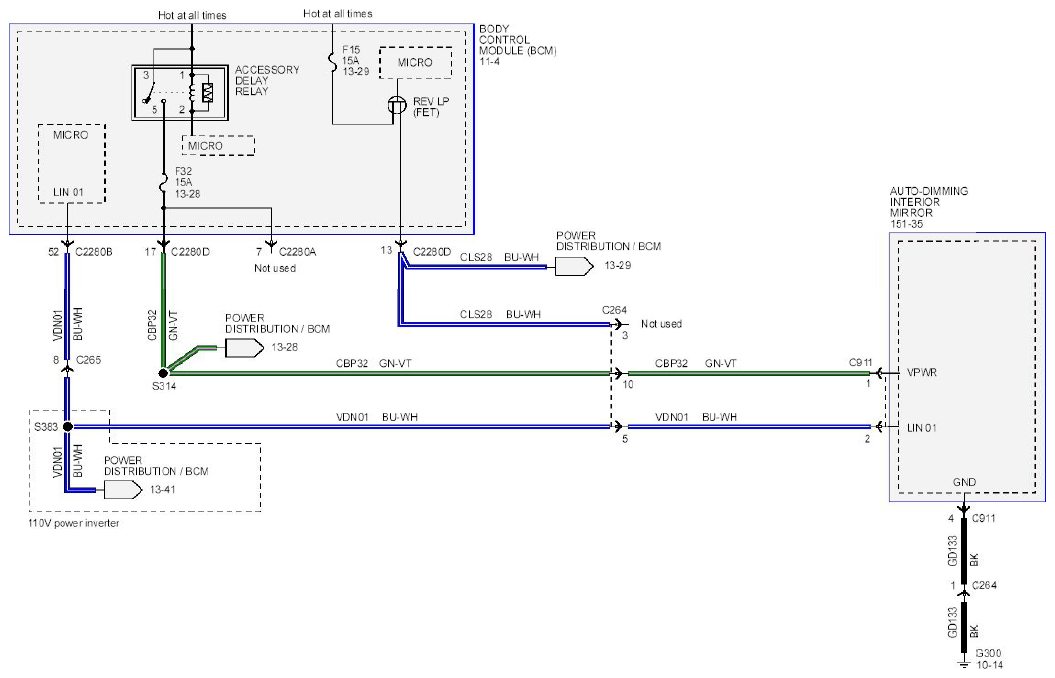

Fig 1: Rear View Camera AM/FM AM/FM/CD - Circuit Diagram (1 Of 2)

Courtesy of FORD MOTOR CO.

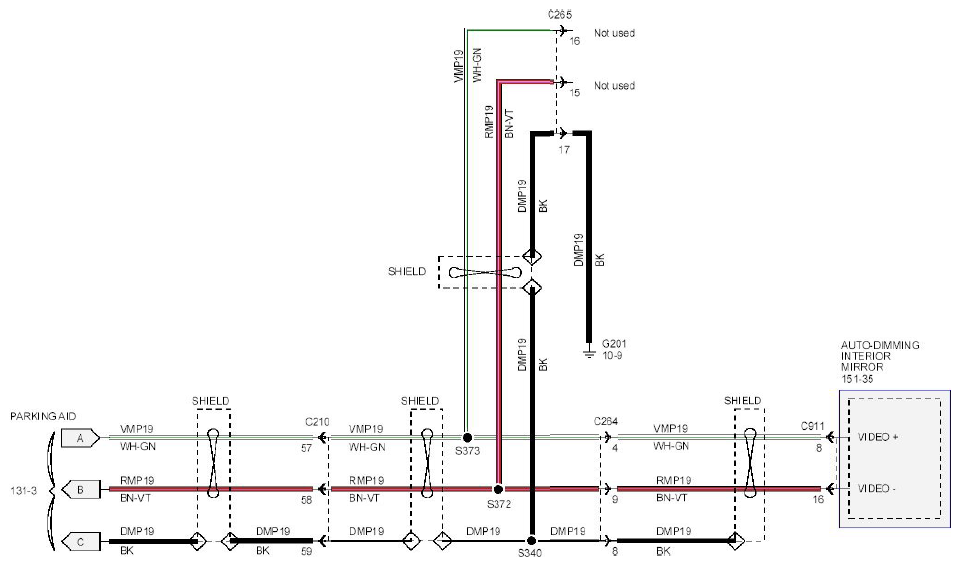

Fig 2: Rear View Camera AM/FM AM/FM/CD - Circuit Diagram (2 Of 2)

Courtesy of FORD MOTOR CO.
