8-Inch Touchscreen Without SONY ® Sound

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

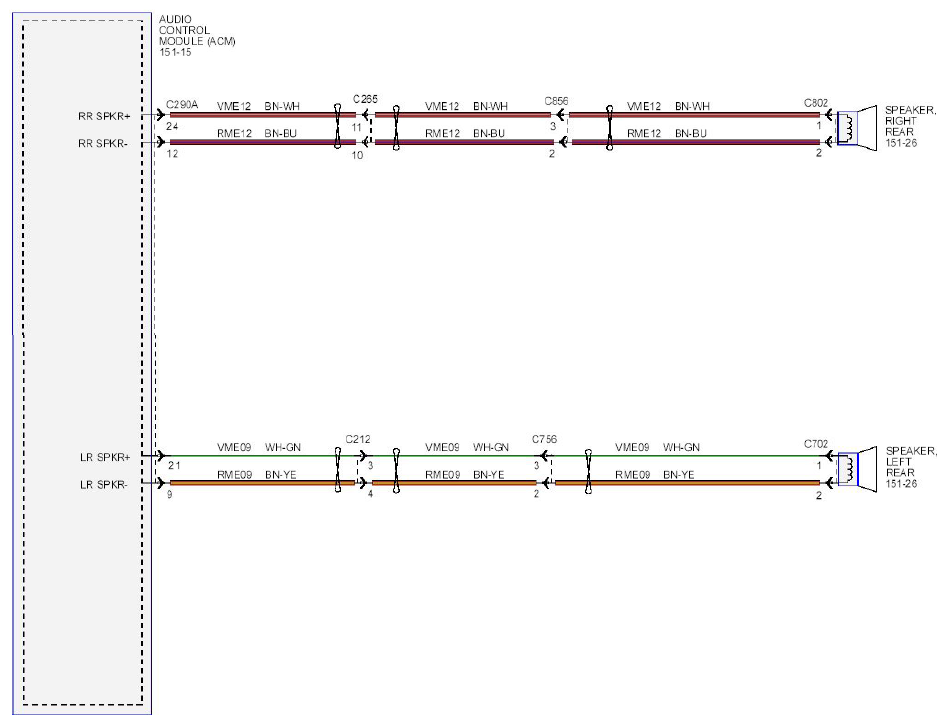

Fig 1: Audio System/Navigation - Circuit Diagram - 8-Inch Touchscreen Without Sony ® Sound (1 Of 3)

Courtesy of FORD MOTOR CO.

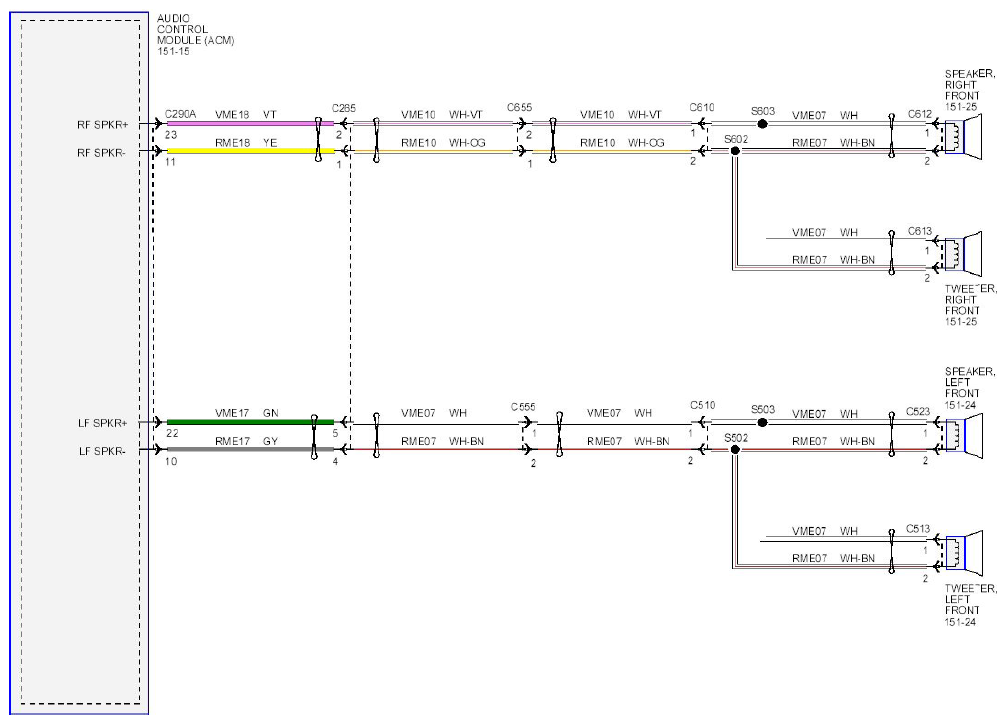

Fig 2: Audio System/Navigation - Circuit Diagram - 8-Inch Touchscreen Without Sony ® Sound (2 Of 3)

Courtesy of FORD MOTOR CO.

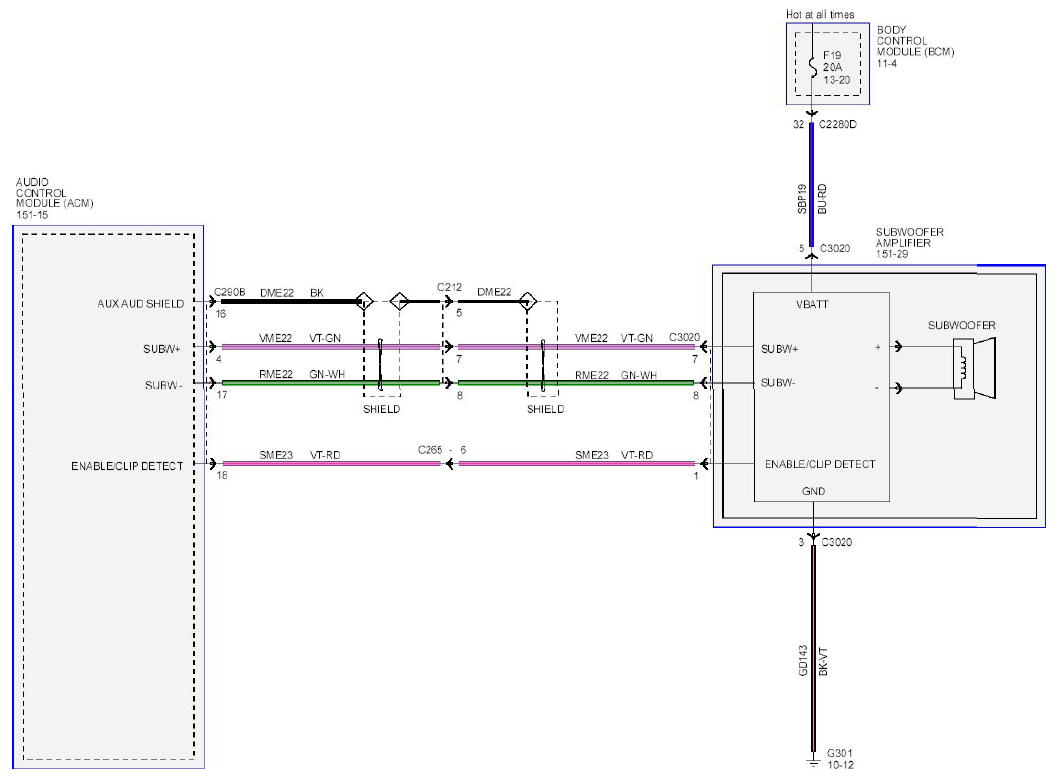

Fig 3: Audio System/Navigation - Circuit Diagram - 8-Inch Touchscreen Without Sony ® Sound (3 Of 3)

Courtesy of FORD MOTOR CO.
