Seat Control Switch, Passenger Side (10 - Way): Schematic

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

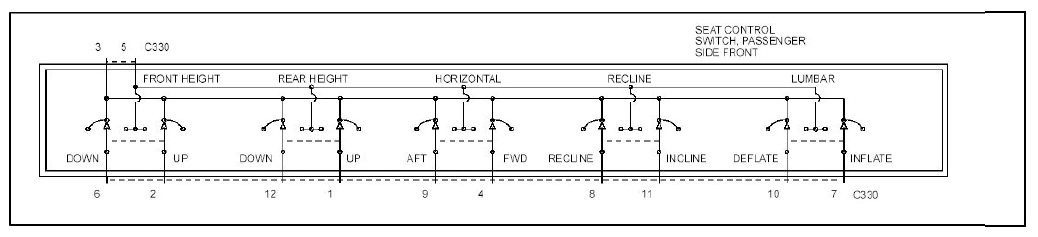

Fig 1: Passenger Side Seat Control Switch (10 - Way) Schematic
G08748636Courtesy of FORD MOTOR CO.
