With Paddle Shift

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

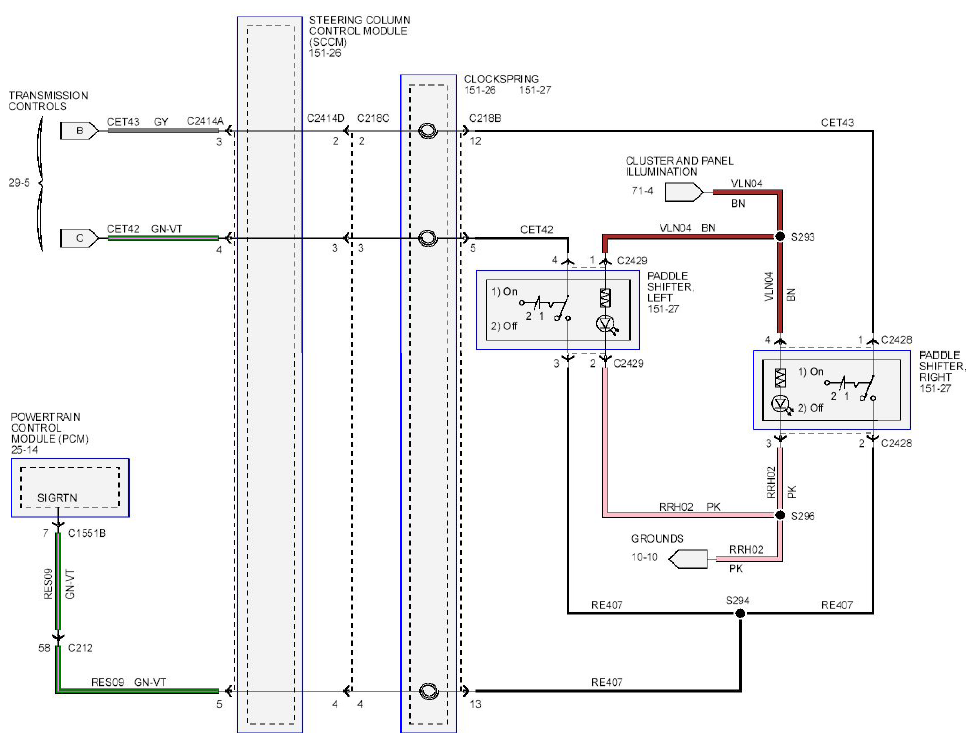

Fig 1: Transmission Controls - (6F50/6F55) Wiring Diagram (With Paddle Shift)
G08748402Courtesy of FORD MOTOR CO.
