Section 205 (OEM Wiring Diagrams)
>>
Transmission Controls - 6F50/6F55
>>
Notes
Transmission Controls - 6F50/6F55: Notes
WARNING:
This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

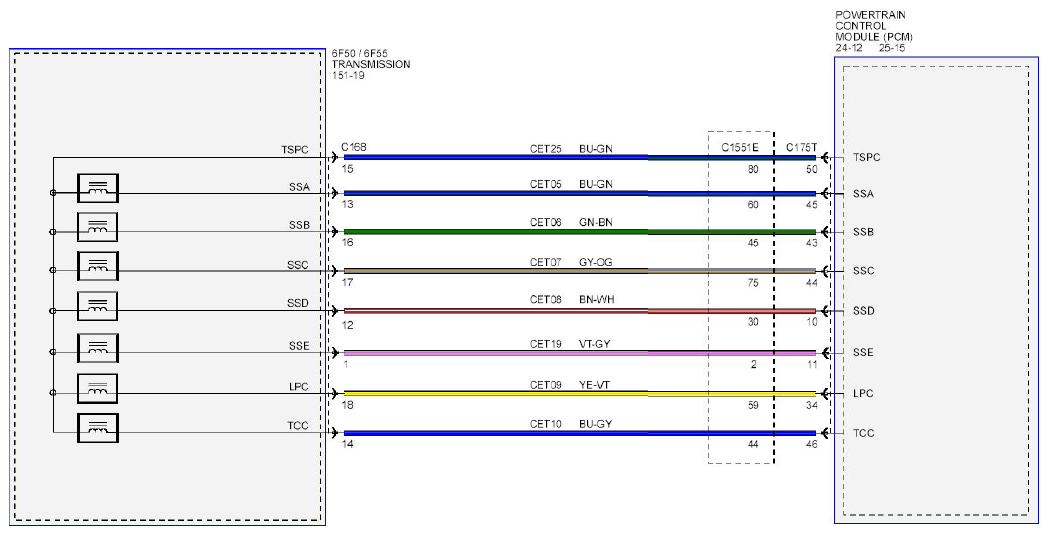

Fig 1: Transmission Controls (6F50/6F55) - Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

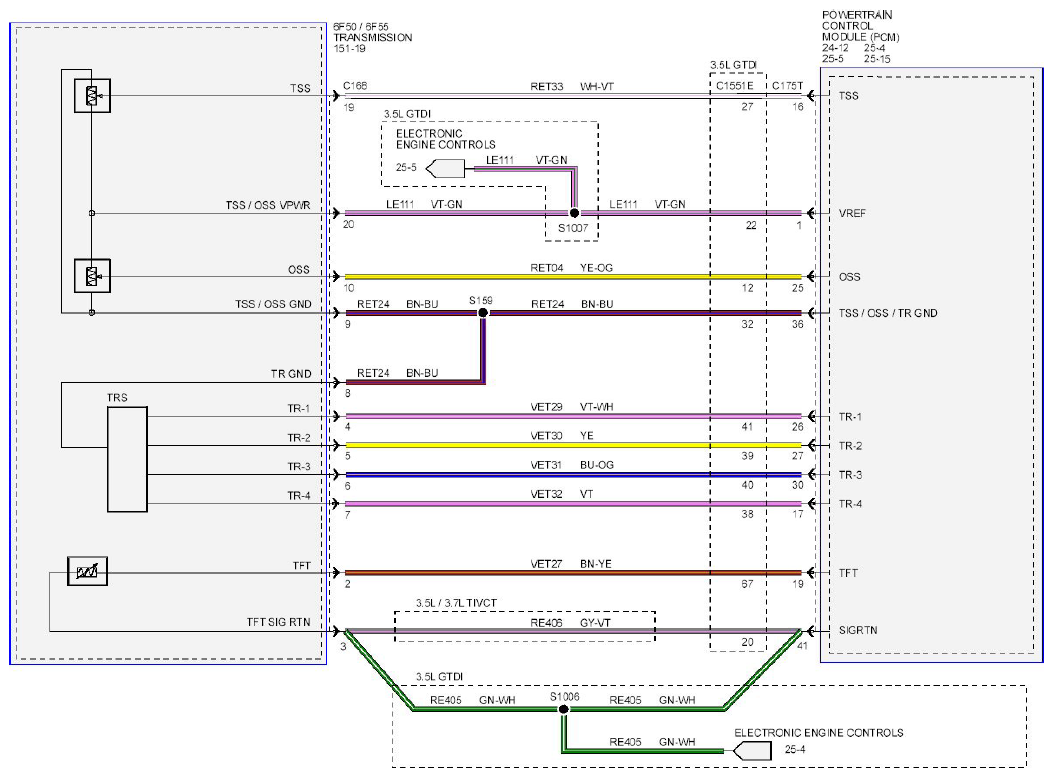

Fig 2: Transmission Controls (6F50/6F55) - Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
