Power Liftgate

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

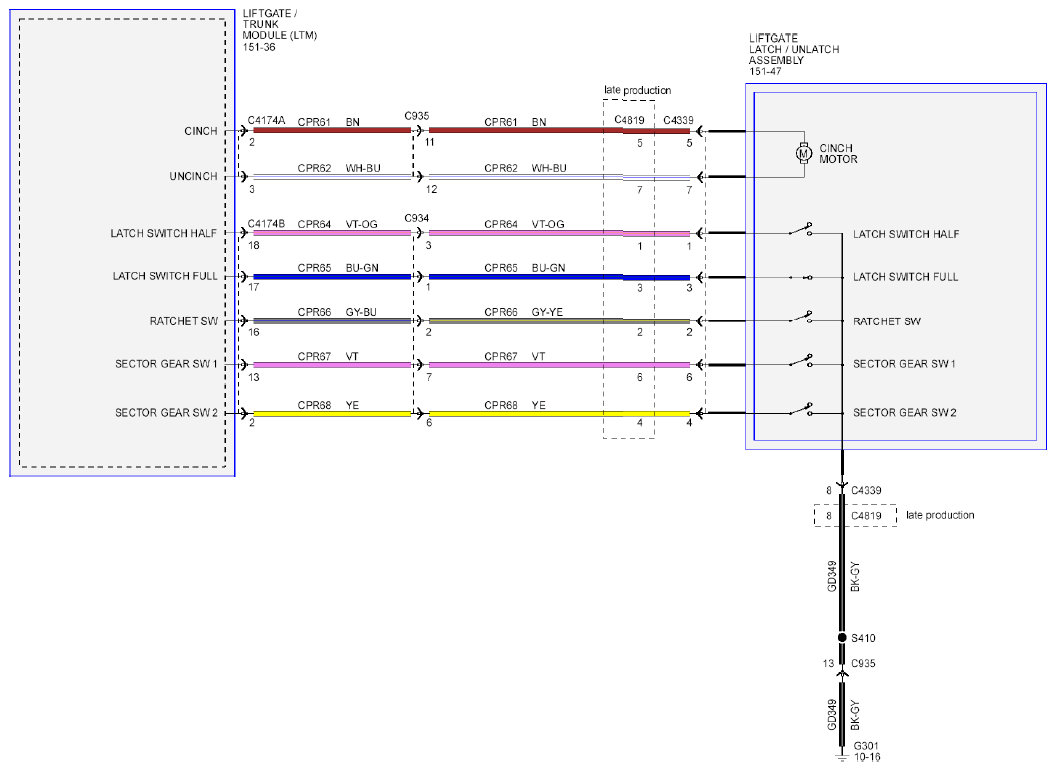

Fig 1: Power Liftgate - Wiring Diagram (1 Of 5)

Courtesy of FORD MOTOR CO.

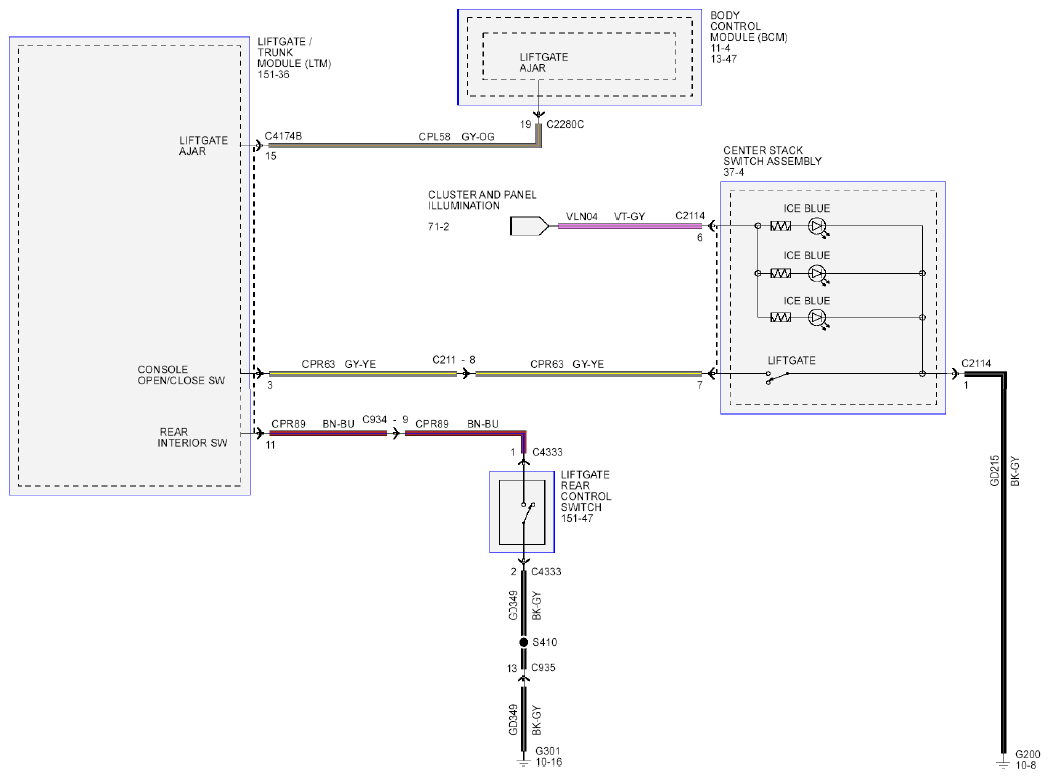

Fig 2: Power Liftgate - Wiring Diagram (2 Of 5)

Courtesy of FORD MOTOR CO.

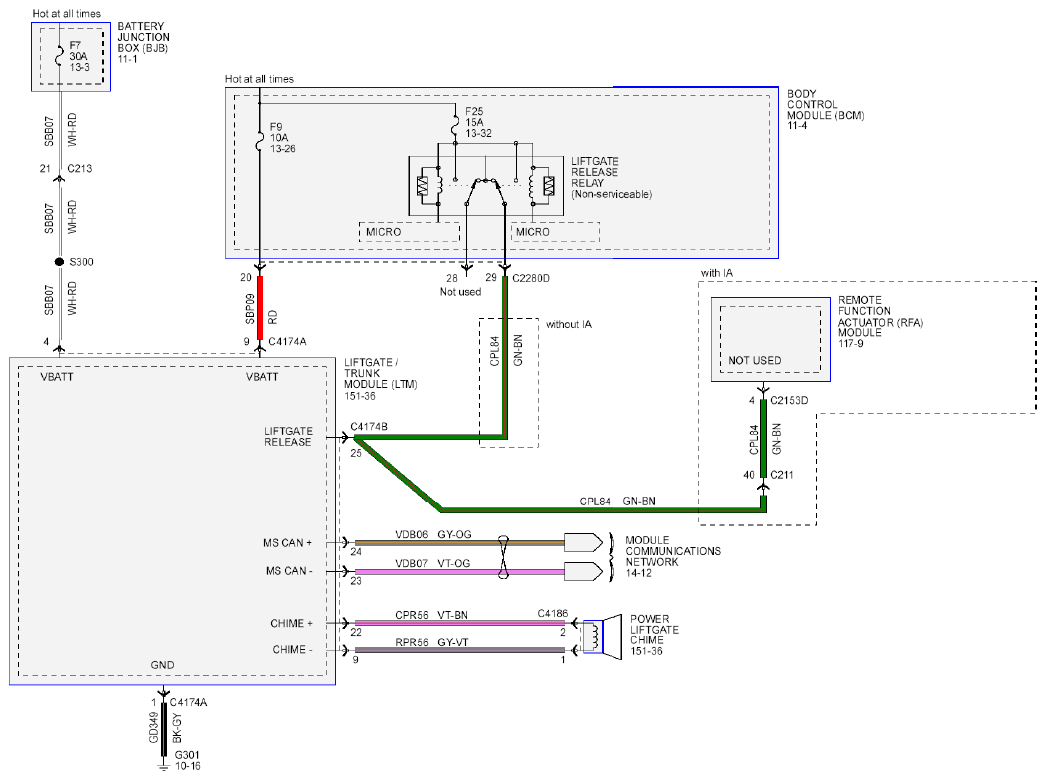

Fig 3: Power Liftgate - Wiring Diagram (3 Of 5)

Courtesy of FORD MOTOR CO.

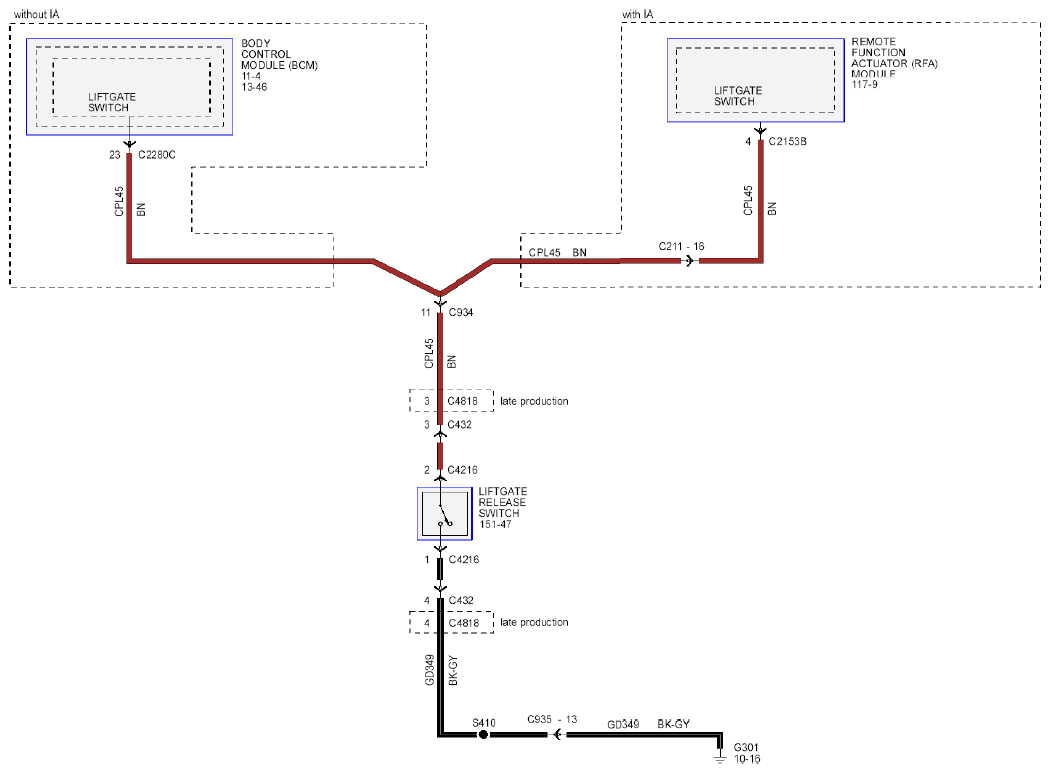

Fig 4: Power Liftgate - Wiring Diagram (4 Of 5)

Courtesy of FORD MOTOR CO.

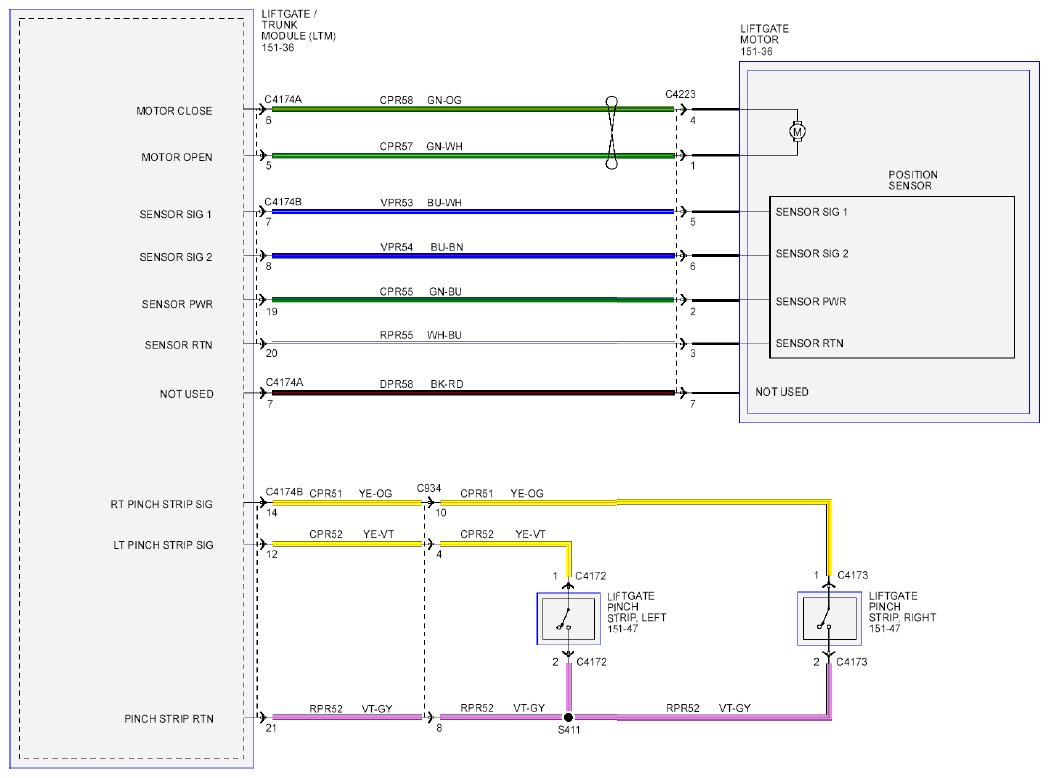

Fig 5: Power Liftgate - Wiring Diagram (5 Of 5)

Courtesy of FORD MOTOR CO.
