F73, F74

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

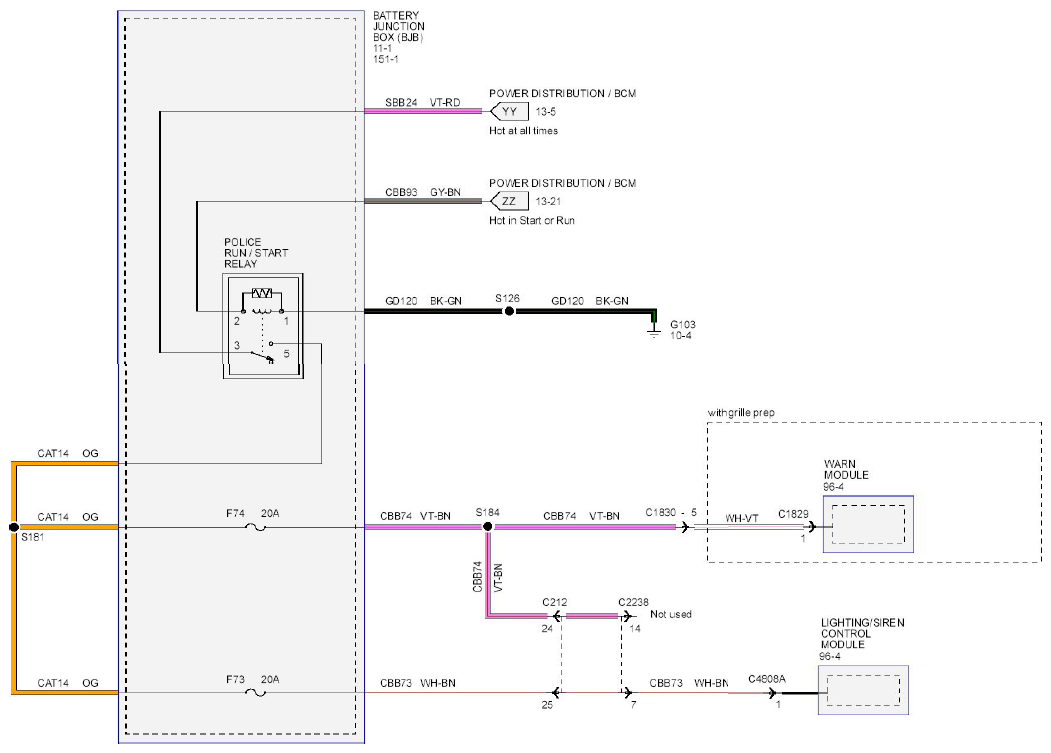

Fig 1: Power Distribution/BCM - Wiring Diagram - F73 And F74 (Police Option)
G08748317Courtesy of FORD MOTOR CO.
