Power Distribution/BCM: F67

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

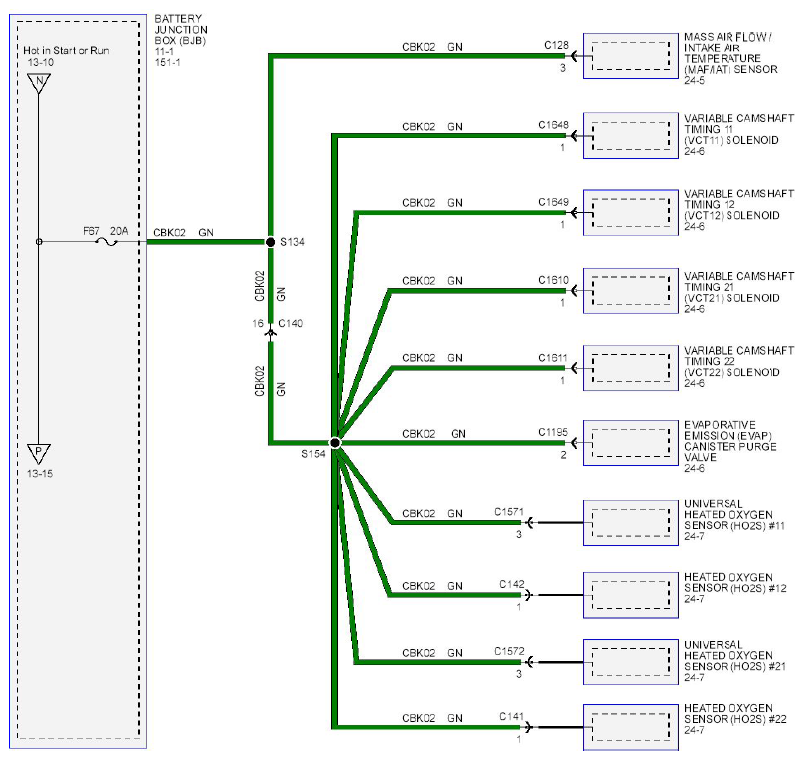

Fig 1: Power Distribution/BCM - Wiring Diagram - F67 (2.0L GTDI)

Courtesy of FORD MOTOR CO.

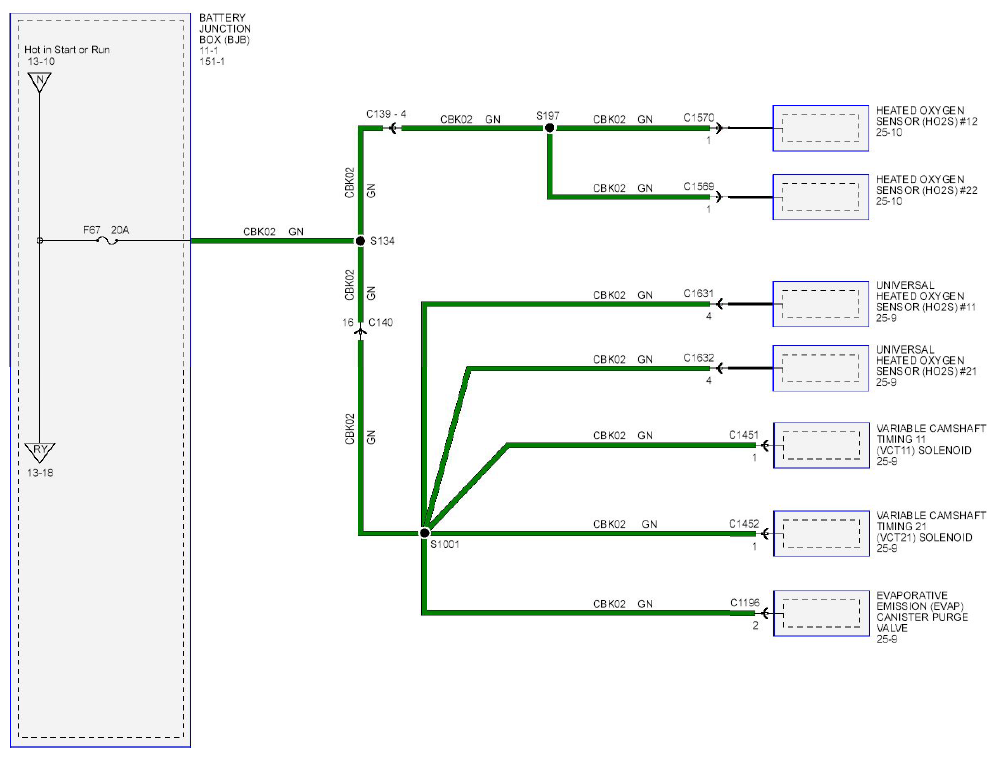

Fig 1: Power Distribution/BCM - Wiring Diagram - F67 (3.5L/3.7L TIVCT)

Courtesy of FORD MOTOR CO.

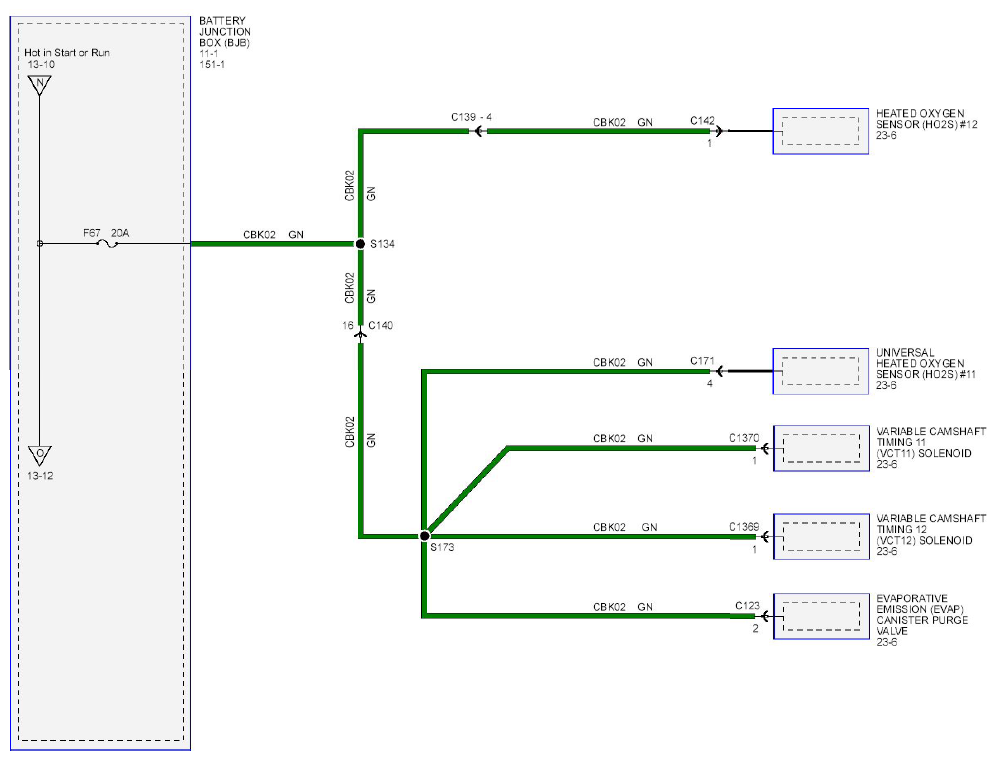

Fig 1: Power Distribution/BCM - Wiring Diagram - F67 (3.5L GTDI)

Courtesy of FORD MOTOR CO.
