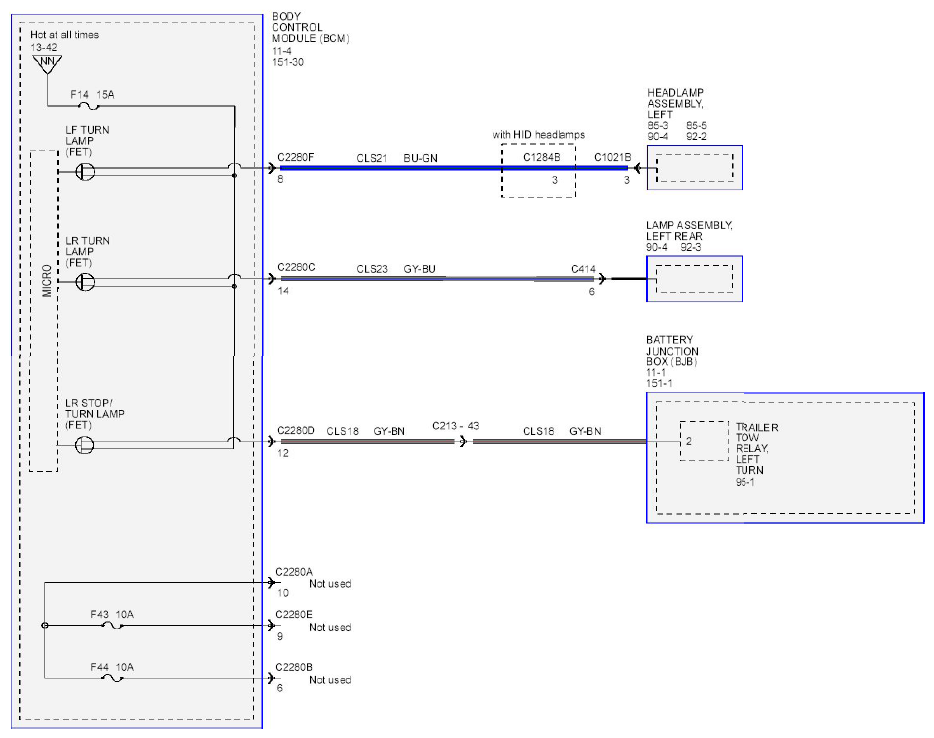

Fig 1: Power Distribution/BCM - Wiring Diagram - F14, F43 And F44
G08748338Courtesy of FORD MOTOR CO.
