F1, F2, F3, F4, F5, F6, F7, F8

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

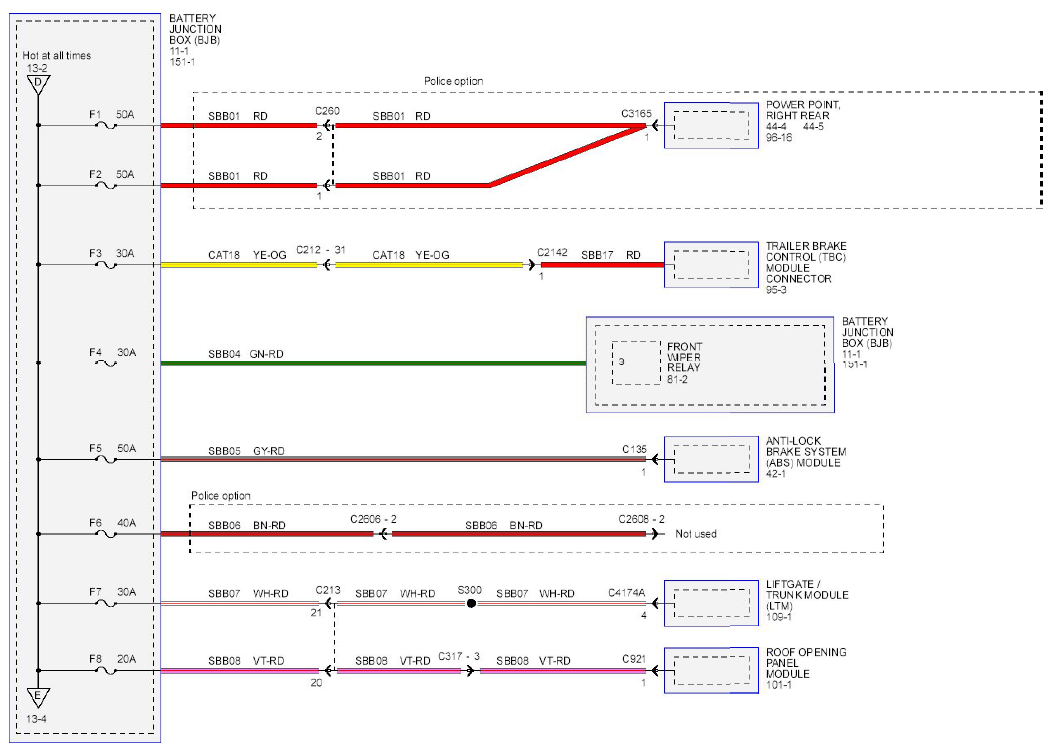

Fig 1: Power Distribution/BCM - Wiring Diagram - F1, F2, F3, F4, F5, F6, F7 And F8

Courtesy of FORD MOTOR CO.
