Section 205 (OEM Wiring Diagrams)
>>
Passive Anti-Theft System
>>
Without IA
Without IA
WARNING:
This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

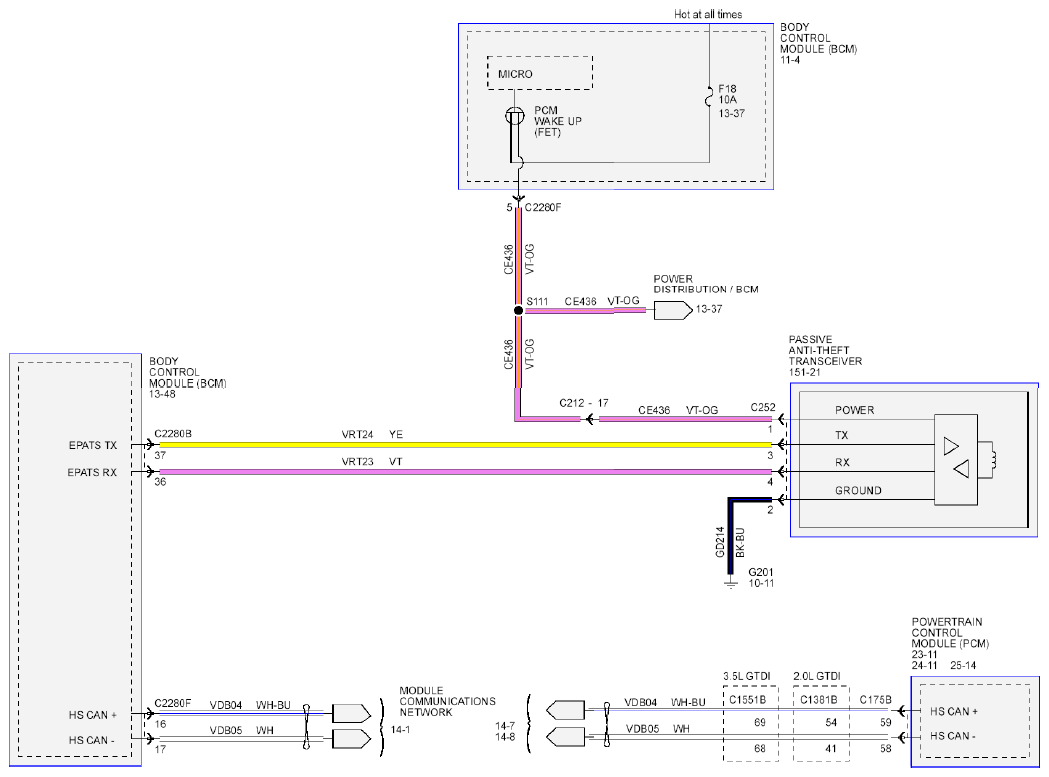

Fig 1: Passive Anti-Theft System - Wiring Diagram (Without IA)
Courtesy of FORD MOTOR CO.
