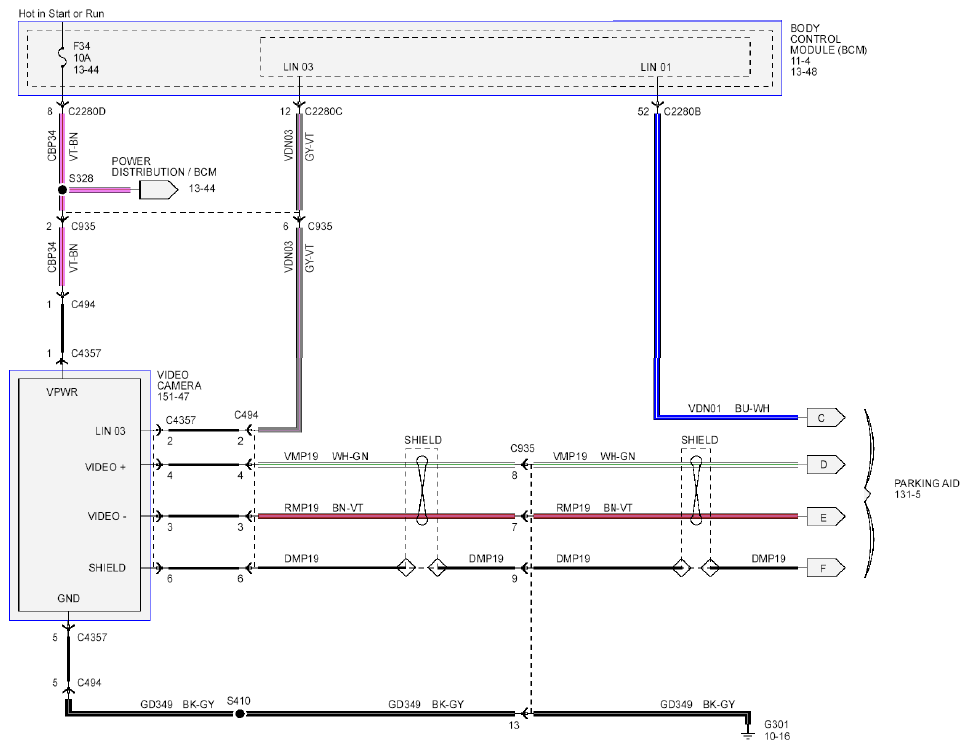

Fig 1: Parking Aid - Wiring Diagram (Rear View Camera - Except Sync Gen 2) (1 Of 2)
Courtesy of FORD MOTOR CO.

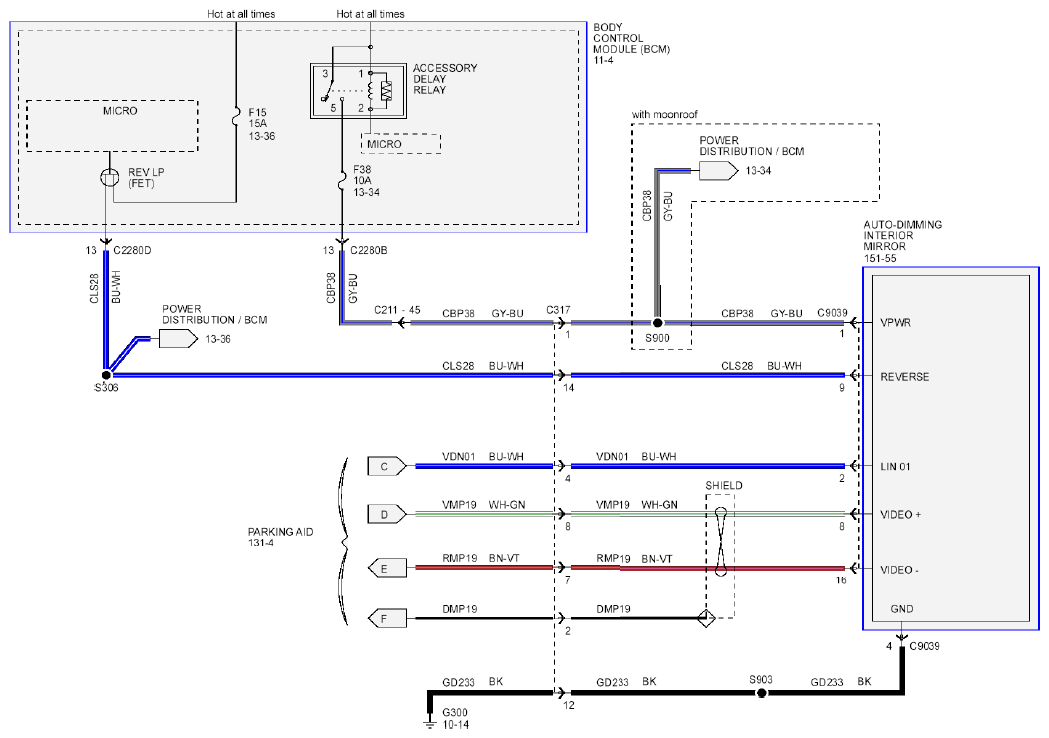

Fig 2: Parking Aid - Wiring Diagram (Rear View Camera - Except Sync Gen 2) (2 Of 2)
