WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

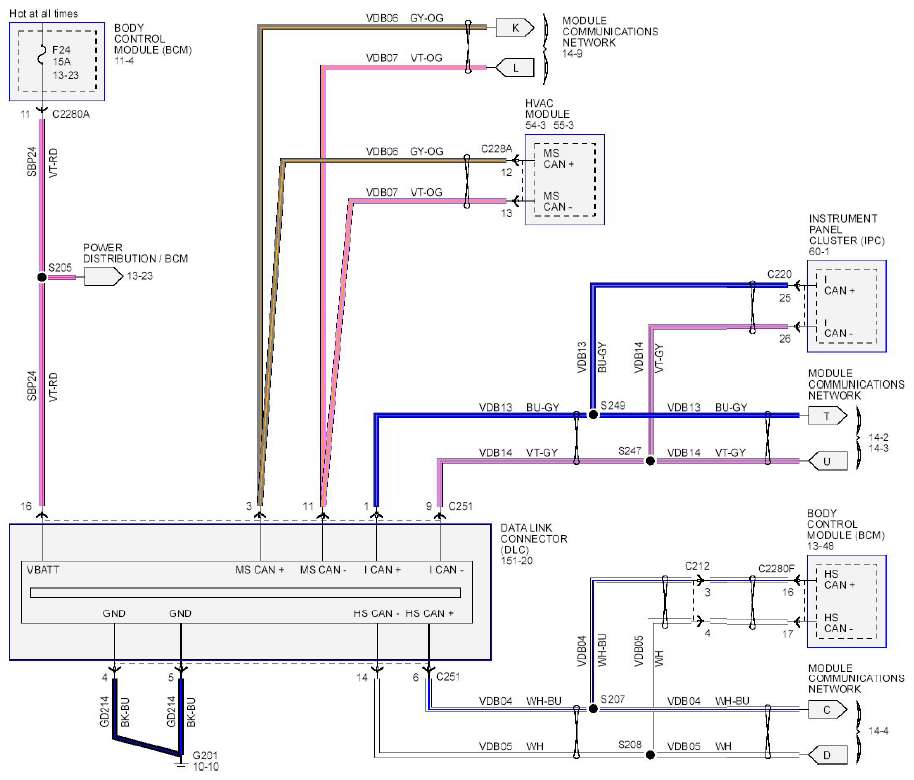

Fig 1: Module Communication Network - Wiring Diagram (1 Of 8)
Courtesy of FORD MOTOR CO.

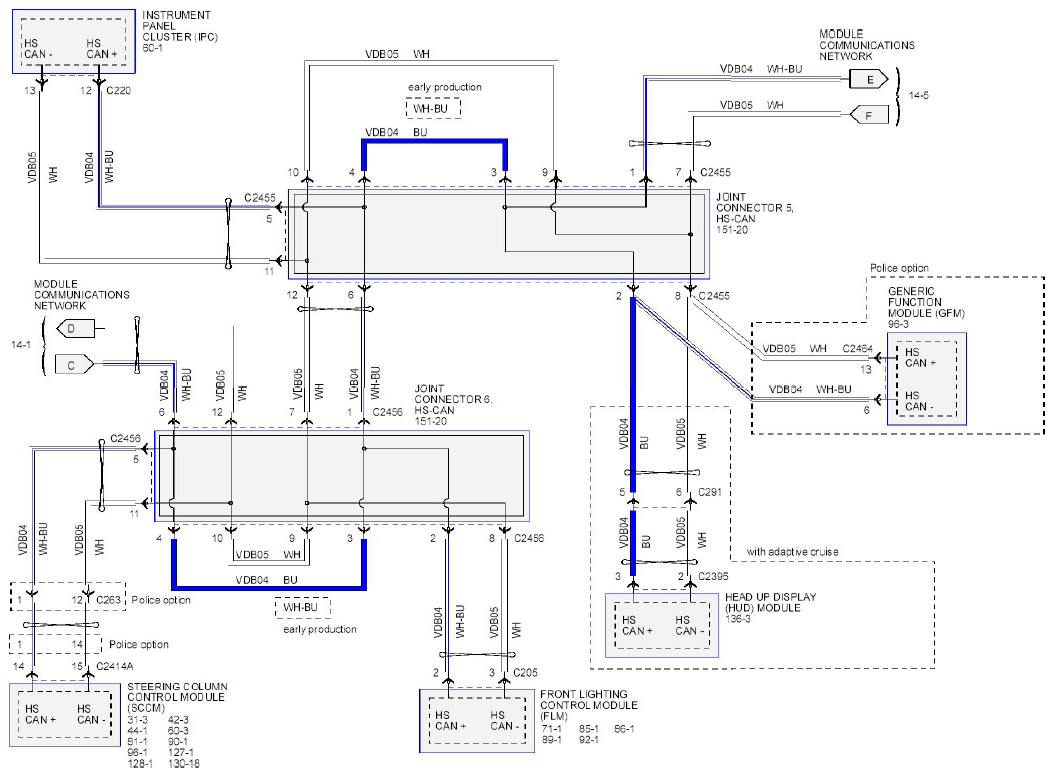

Fig 2: Module Communication Network - Wiring Diagram (2 Of 8)
Courtesy of FORD MOTOR CO.

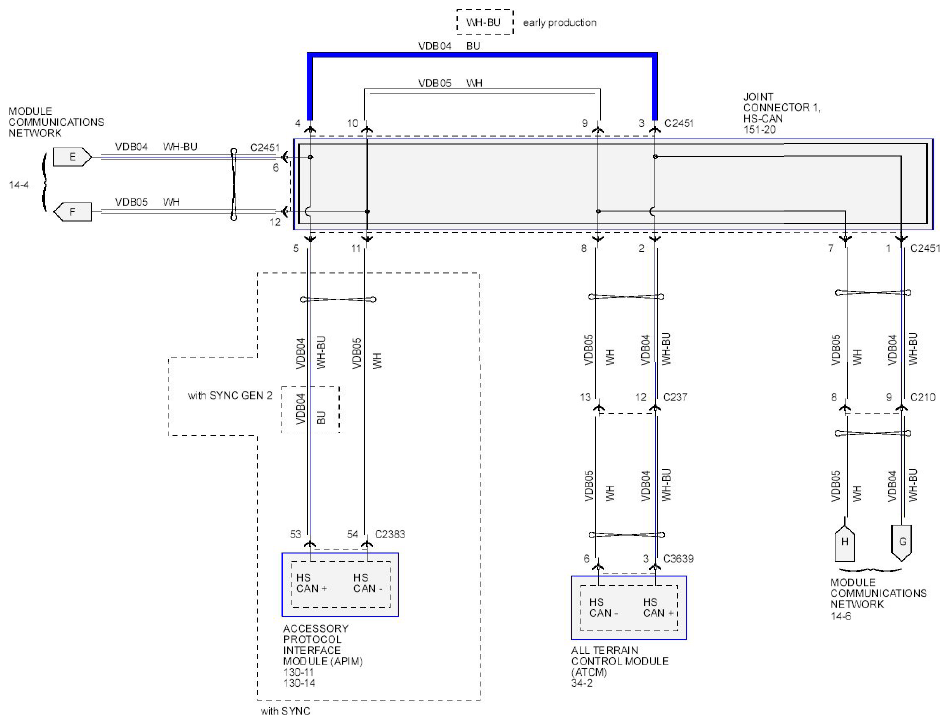

Fig 3: Module Communication Network - Wiring Diagram (3 Of 8)
Courtesy of FORD MOTOR CO.

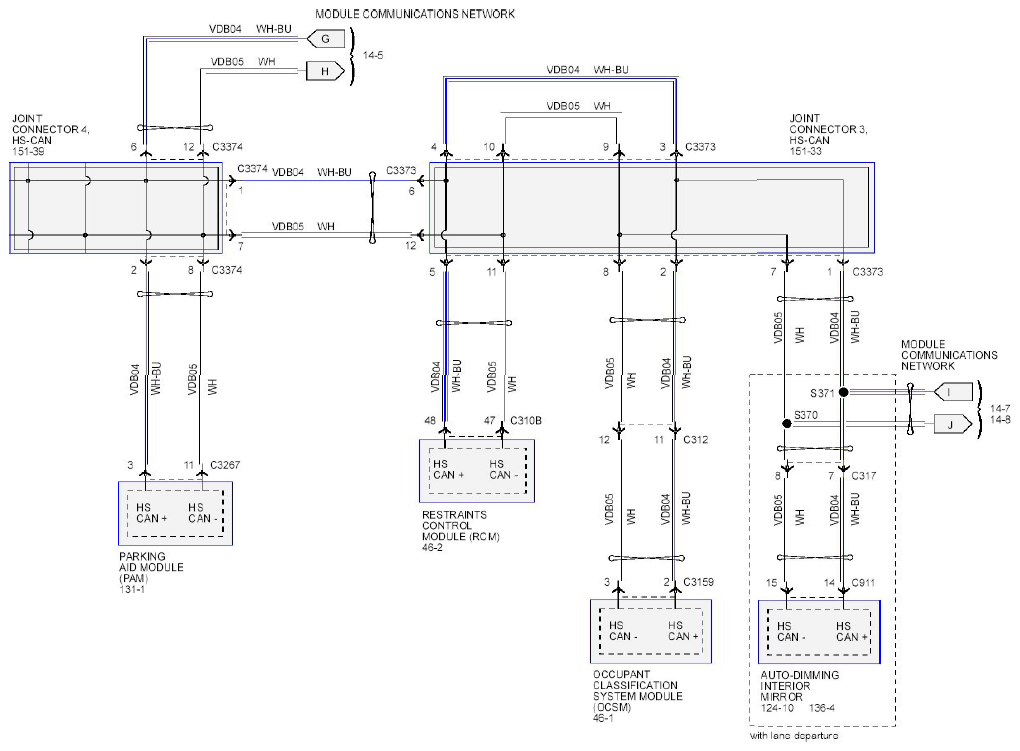

Fig 4: Module Communication Network - Wiring Diagram (4 Of 8)
Courtesy of FORD MOTOR CO.

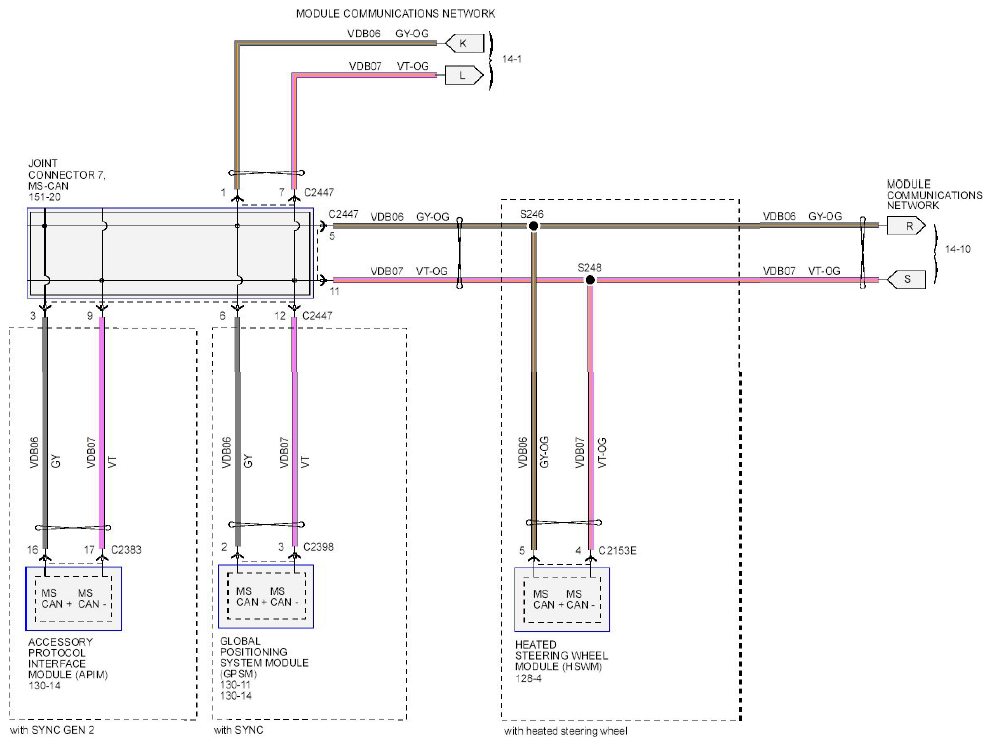

Fig 5: Module Communication Network - Wiring Diagram (5 Of 8)
Courtesy of FORD MOTOR CO.

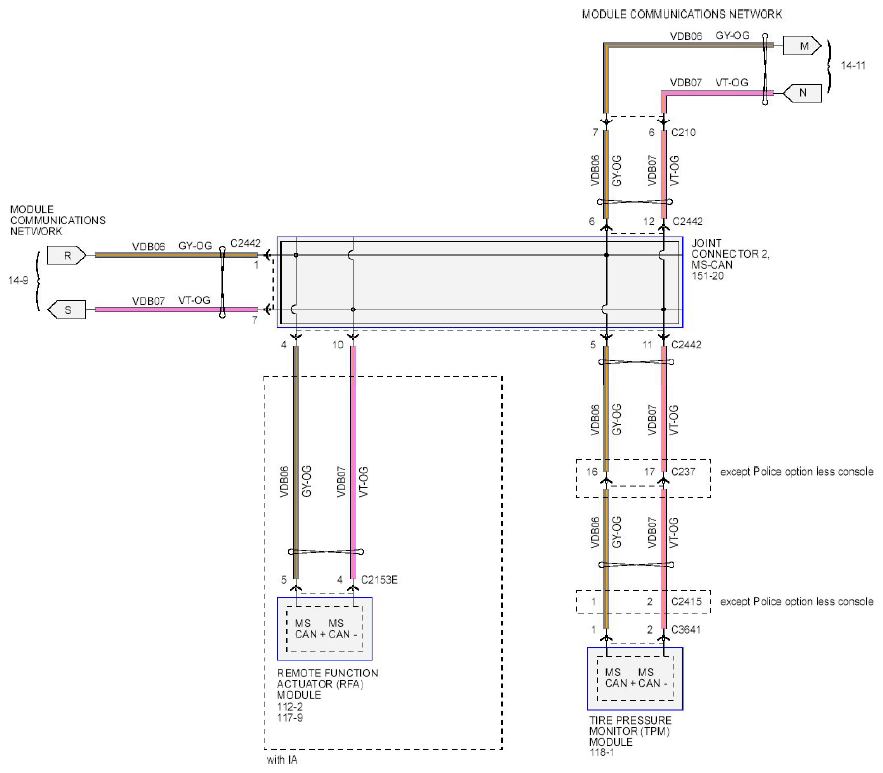

Fig 6: Module Communication Network - Wiring Diagram (6 Of 8)
Courtesy of FORD MOTOR CO.

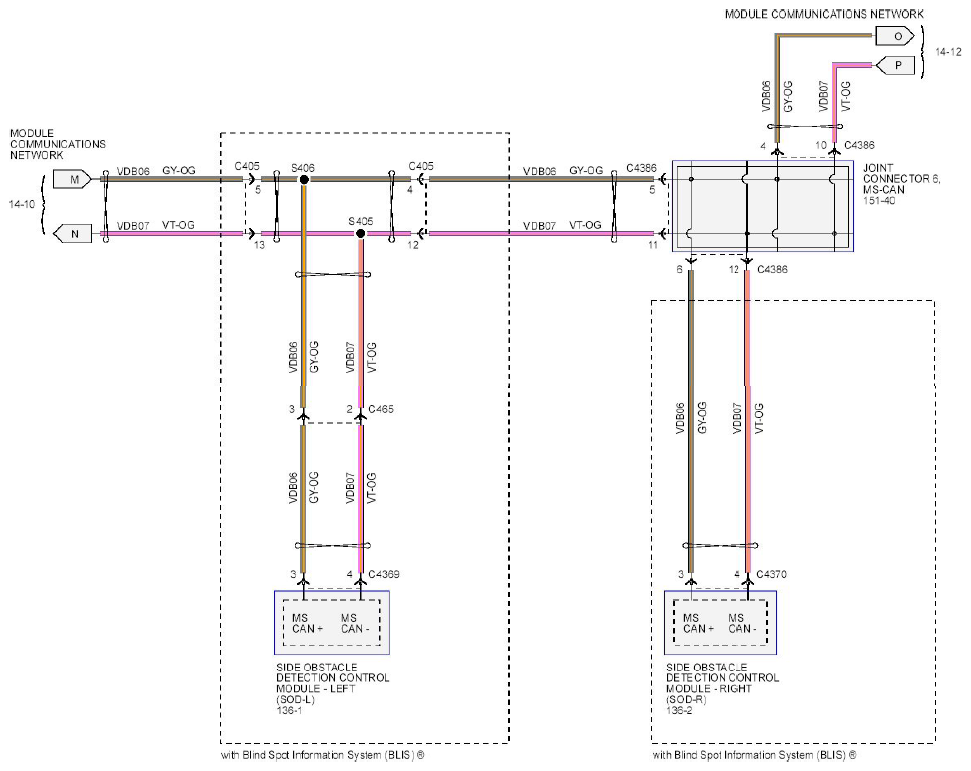

Fig 7: Module Communication Network - Wiring Diagram (7 Of 8)
Courtesy of FORD MOTOR CO.

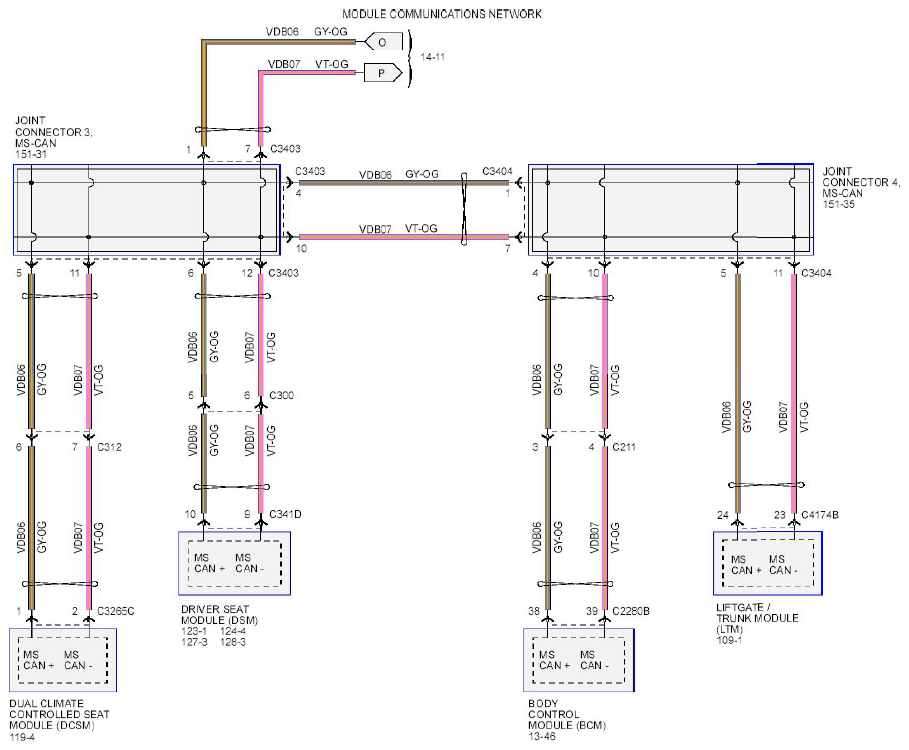

Fig 8: Module Communication Network - Wiring Diagram (8 Of 8)
