3.5L/3.7L TIVCT 3.5L GTDI

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

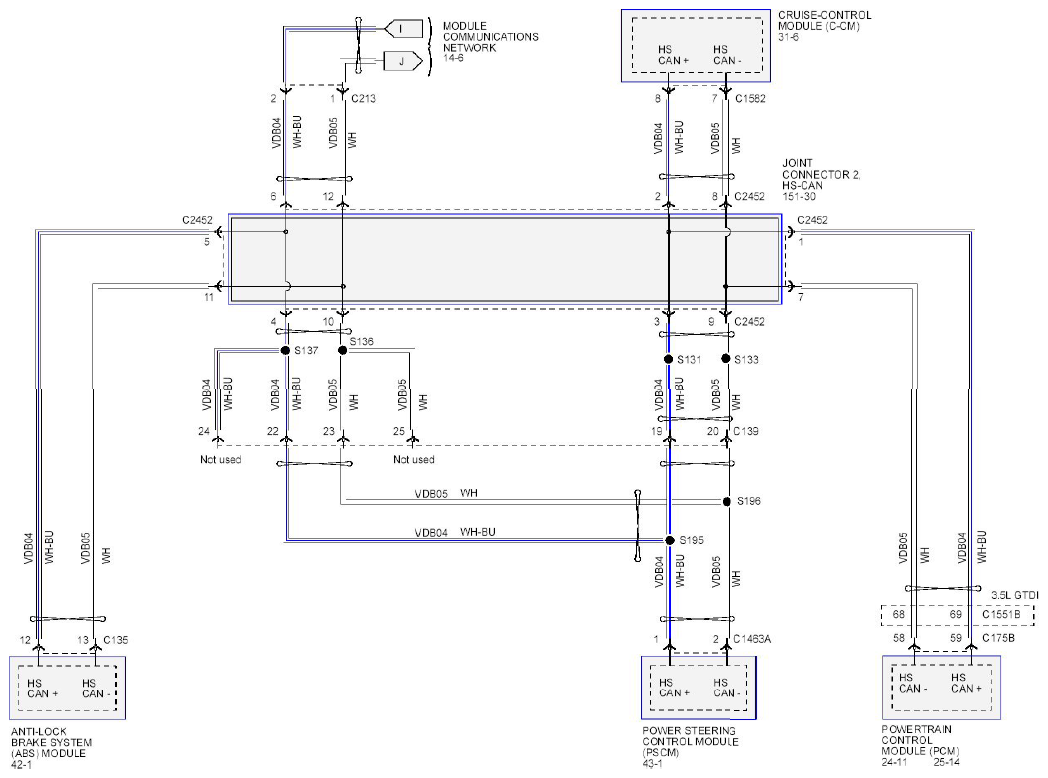

Fig 1: Module Communication Network (3.5L/3.7L TIVCT 3.5L GTDI) - Wiring Diagram
G08748351Courtesy of FORD MOTOR CO.
