Heated Window: Notes

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

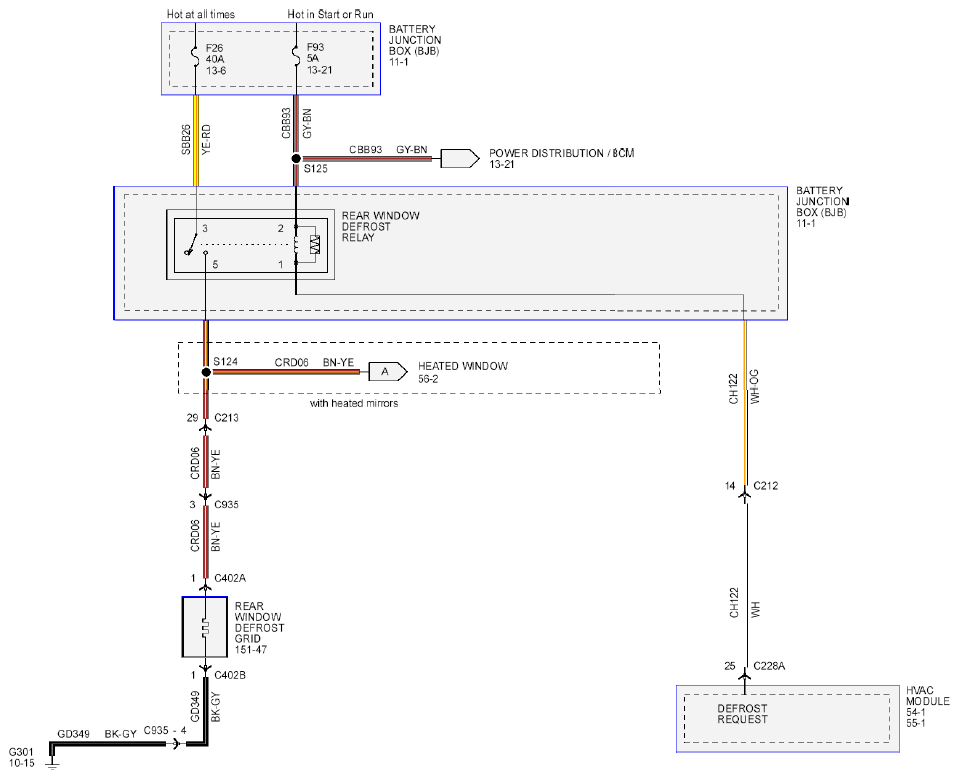

Fig 1: Heated Window - Wiring Diagram
G08748456Courtesy of FORD MOTOR CO.
