With AUTOLAMPS

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

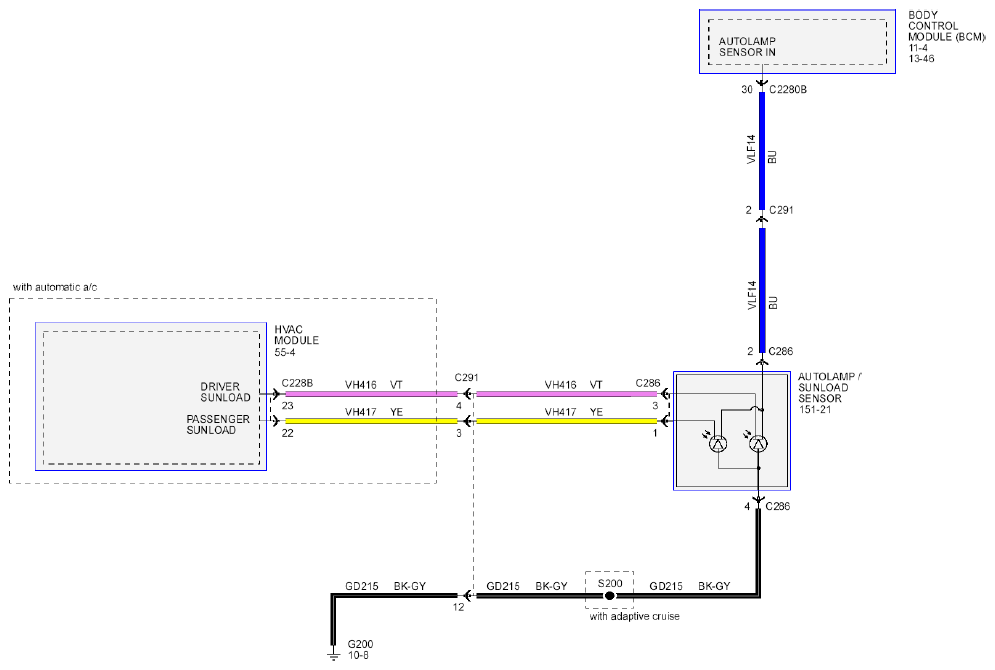

Fig 1: Headlamps/Autolamps - Wiring Diagram (With Autolamps)
G08748473Courtesy of FORD MOTOR CO.
