Except Police Option

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

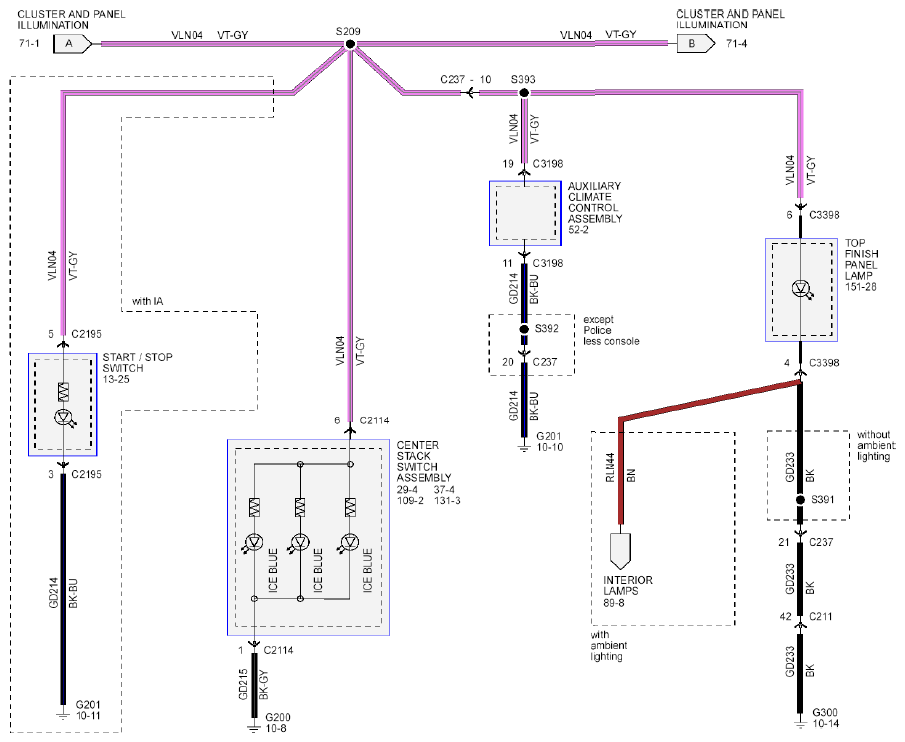

Fig 1: Cluster And Panel Illumination - Wiring Diagram (Except Police Option)
G08748465Courtesy of FORD MOTOR CO.
