With SONY® Sound

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

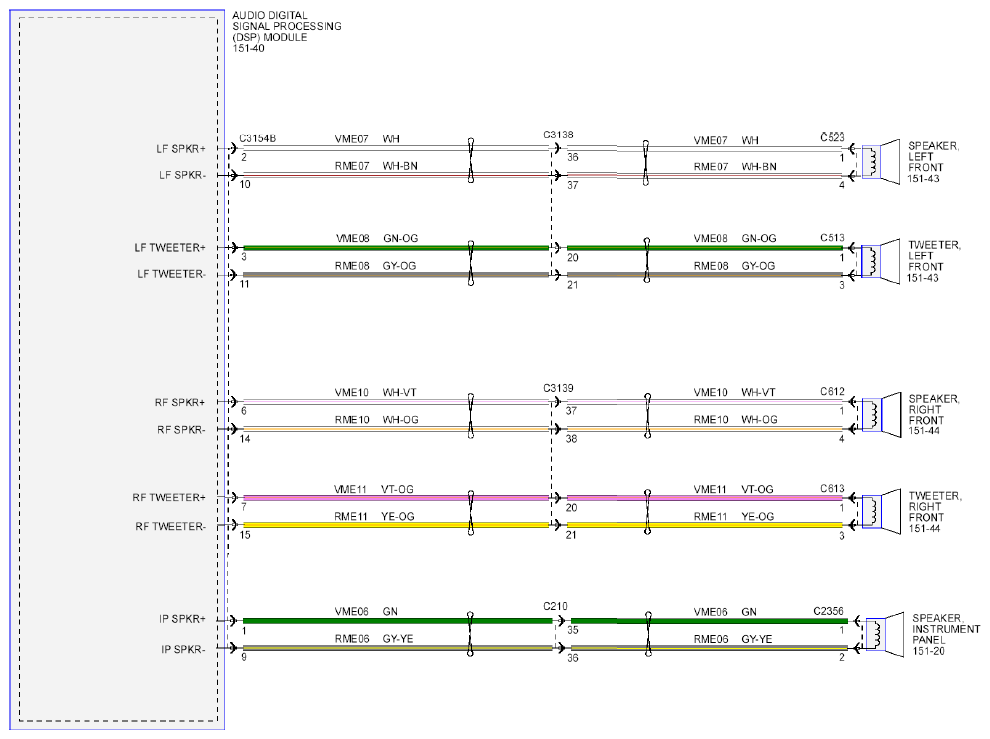

Fig 1: Audio System/Navigation (With Sony® Sound) - Wiring Diagram (1 Of 4)

Courtesy of FORD MOTOR CO.

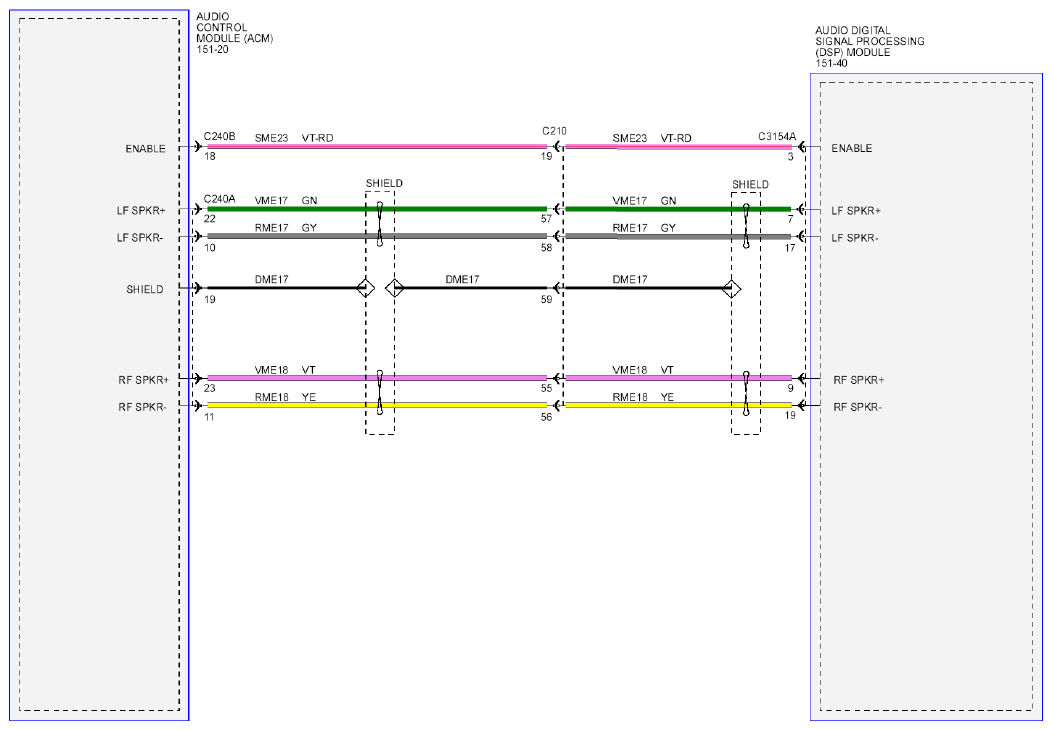

Fig 2: Audio System/Navigation (With Sony® Sound) - Wiring Diagram (2 Of 4)

Courtesy of FORD MOTOR CO.

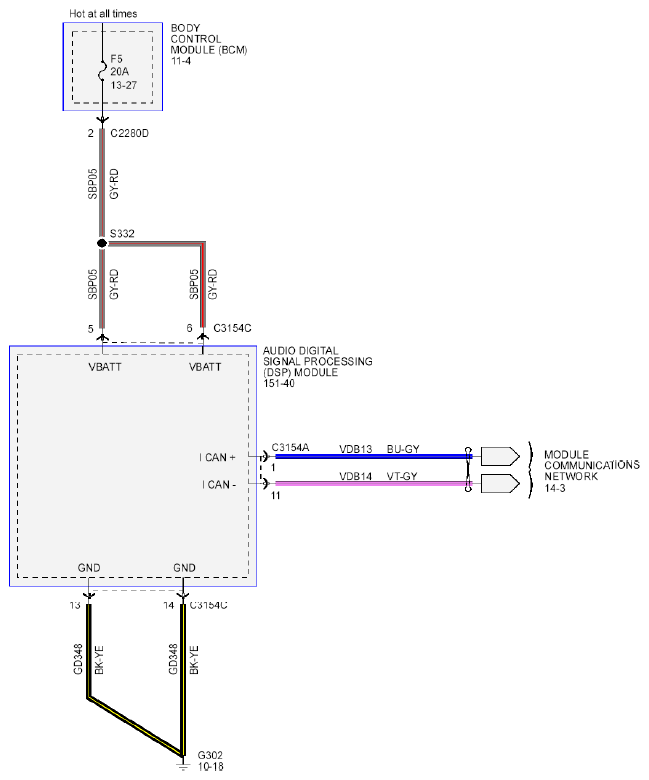

Fig 3: Audio System/Navigation (With Sony® Sound) - Wiring Diagram (3 Of 4)

Courtesy of FORD MOTOR CO.

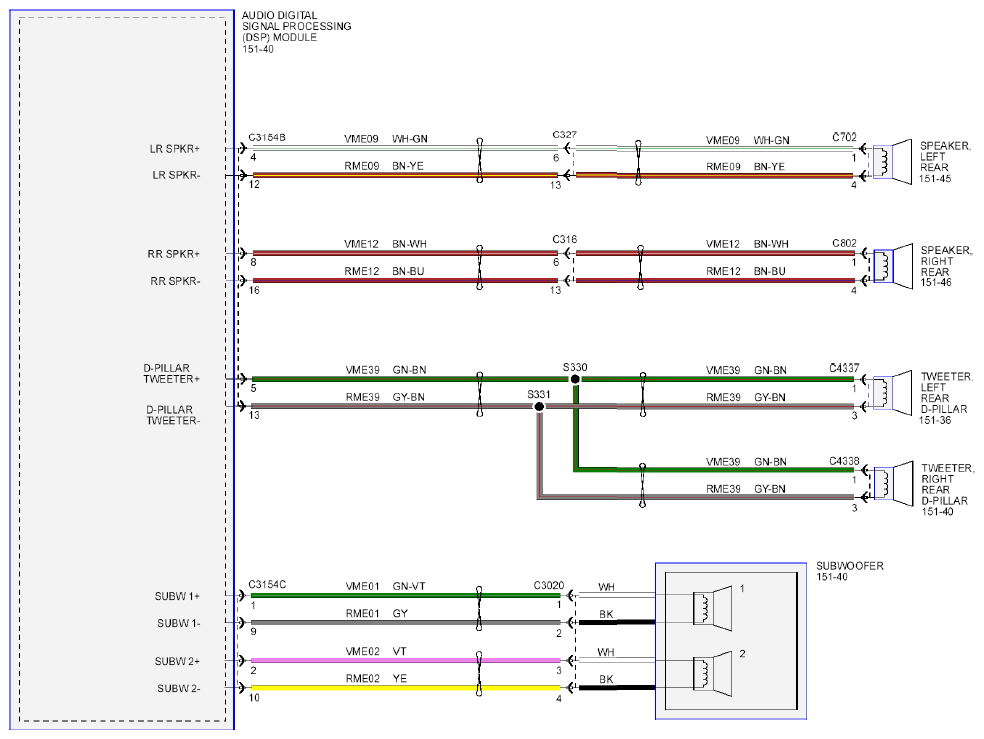

Fig 4: Audio System/Navigation (With Sony® Sound) - Wiring Diagram (4 Of 4)

Courtesy of FORD MOTOR CO.
