With Memory

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

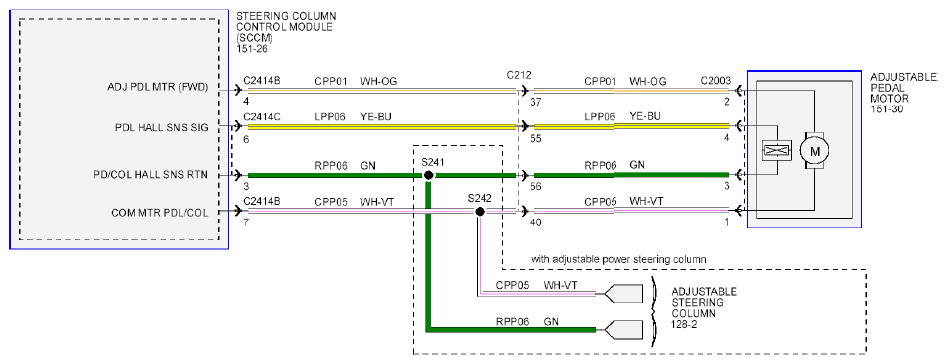

Fig 1: Adjustable Pedal (With Memory) - Wiring Diagram (1 Of 2)

Courtesy of FORD MOTOR CO.

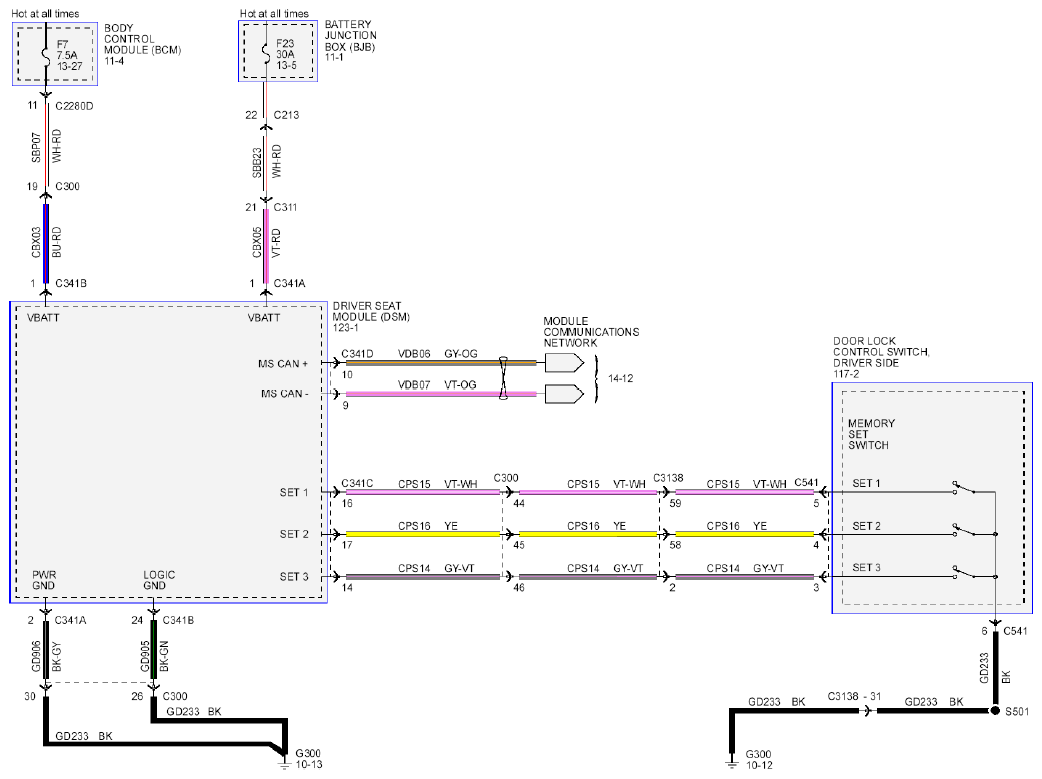

Fig 2: Adjustable Pedal (With Memory) - Wiring Diagram (2 Of 2)

Courtesy of FORD MOTOR CO.
