WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

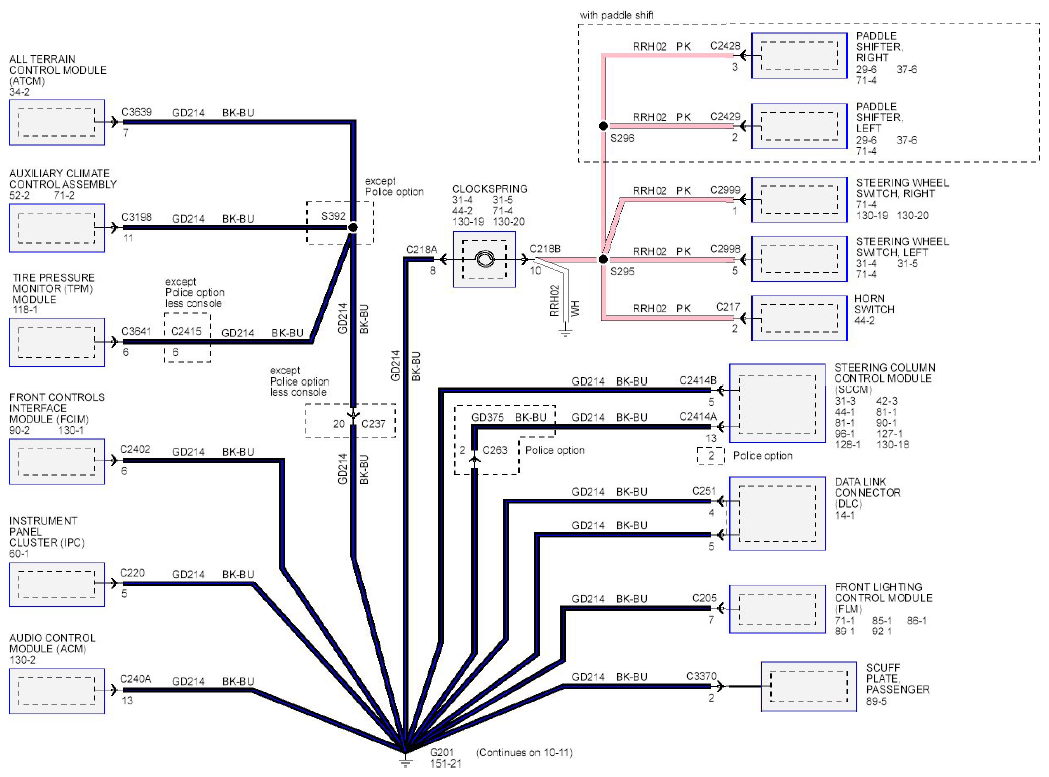

Fig 1: Grounds System (G201) Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

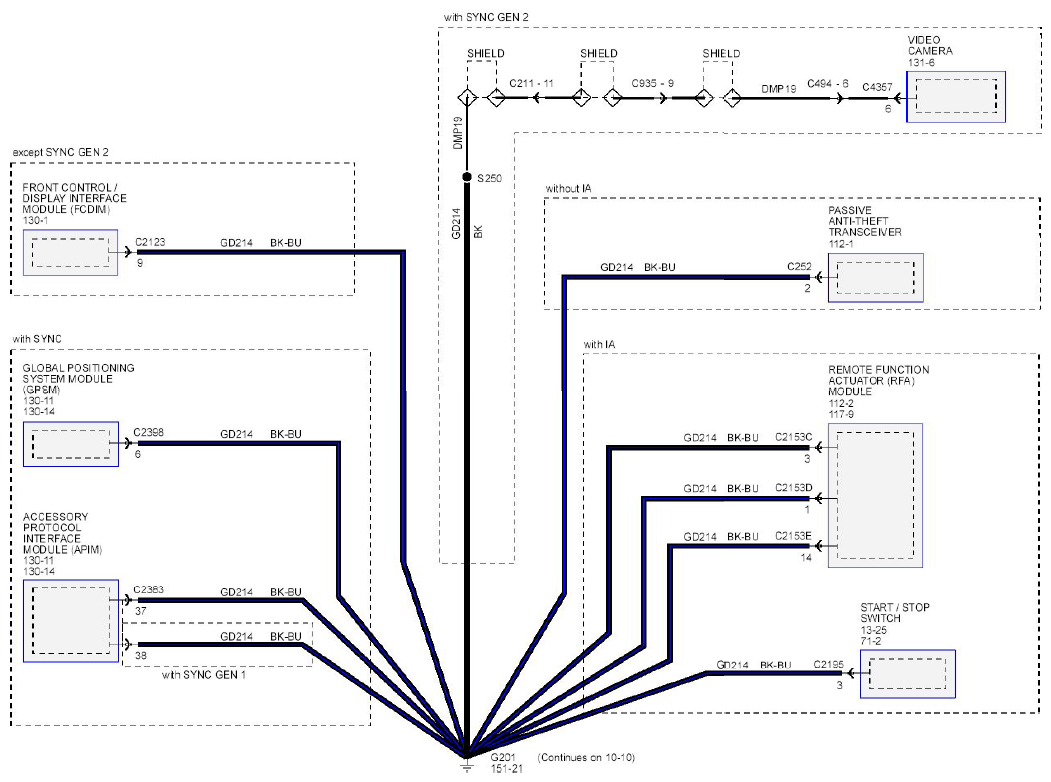

Fig 2: Grounds System (G201) Wiring Diagram (2 Of 2)
