G103, G108

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

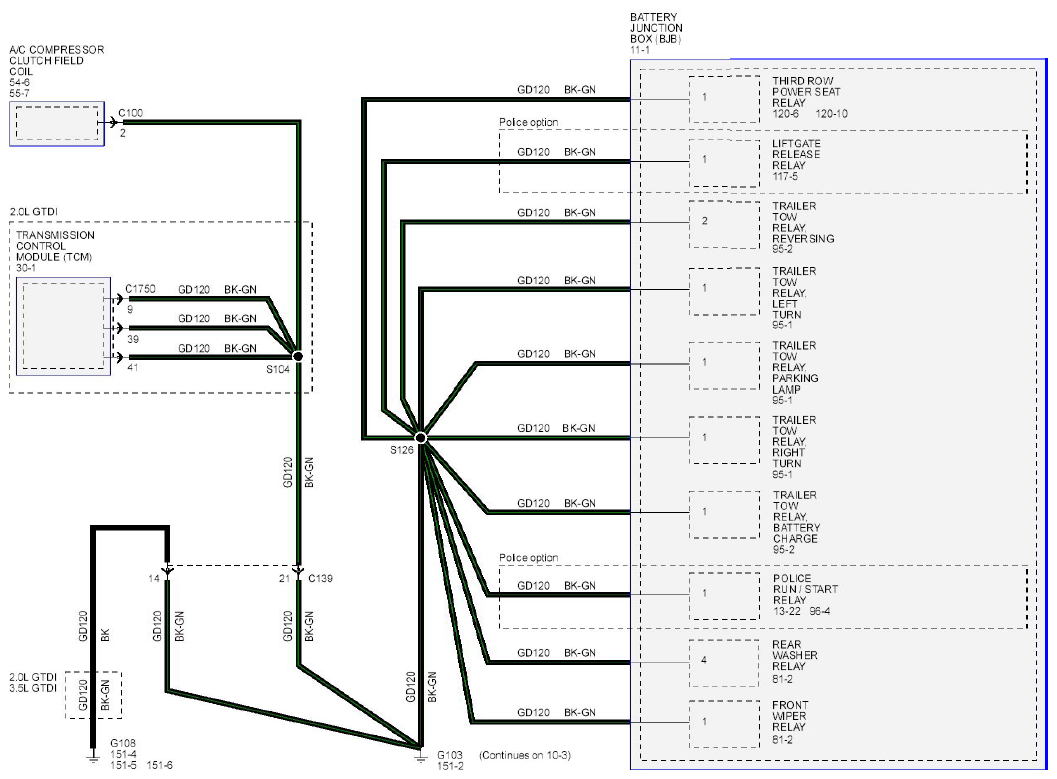

Fig 1: Grounds System Wiring Diagram (G103, G108)
G08748276Courtesy of FORD MOTOR CO.
