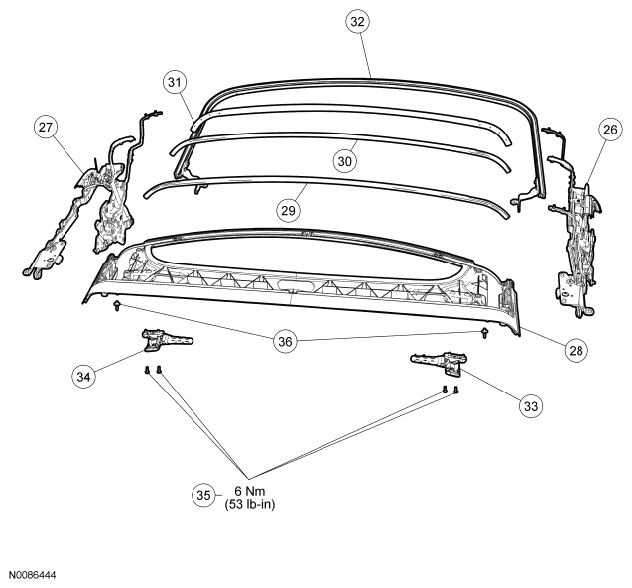

Convertible Top Assembly (View 3 of 3)
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 26 | 53105 | Convertible top frame LH side rail |
| 27 | 53104 | Convertible top frame RH side rail |
| 28 | 53024 | Convertible top frame No. 1 bow |
| 29 | 51274 | Convertible top frame No. 2 bow |
| 30 | 51269 | Convertible top frame No. 3 bow |
| 31 | 52178 | Convertible top frame No. 4 bow |
| 32 | 52188 | Convertible top frame No. 5 bow |
| 33 | 50508-B | LH convertible top latch |
| 34 | 50508-A | RH convertible top latch |
| 35 | - | Convertible top latch screws (4 required) |
| 36 | 514A38 | Dowel pins (2 required) |
- For additional information, refer to the appropriate procedures.
