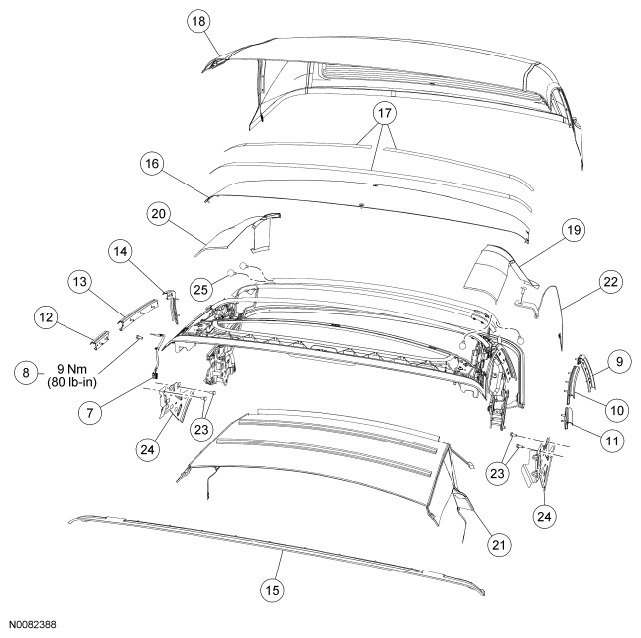

Convertible Top Assembly (View 2 of 3)
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 7 | 14018 | Convertible top ajar switch |
| 8 | - | Convertible top ajar switch screw |
| 9 | 51555 | LH rear weatherstrip retainer channel |
| 10 | 51561 | LH center weatherstrip retainer channel |
| 11 | 51543 | LH front weatherstrip retainer channel |
| 12 | 51542 | RH front weatherstrip retainer channel |
| 13 | 51560 | RH center weatherstrip retainer channel |
| 14 | 51554 | RH rear weatherstrip retainer channel |
| 15 | 514A34 | Compression panel |
| 16 | - | Header form panel (part of 7653038) |
| 17 | - | Double-sided tape |
| 18 | 52700 | Top cover assembly |
| 19 | 54212 | LH stay pad |
| 20 | 54213 | RH stay pad |
| 21 | 51916 | Convertible top headliner |
| 22 | 52806 RH/52807 LH | Convertible top tension cable |
| 23 | W710918 | Pivot bracket-to-quarter panel bracket bolts (6 required) |
| 24 | 28126 RH/28127 LH | Pivot bracket-to-quarter panel brackets |
| 25 | W707504 | Rivet (37 required) |
