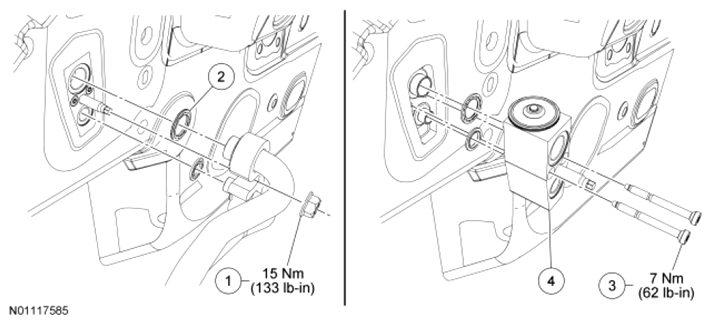

Thermostatic Expansion Valve (TXV)
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W520413 |
Thermostatic Expansion Valve (TXV) fitting nut |
| 2 |
19B596 |
Gasket seal (4 pieces from kit required) |
| 3 |
- |
TXV bolt (2 required) (part of 19849 kit) |
| 4 |
19849 |
TXV |
