Window Glass - Roof: Notes
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS
| Rotunda Pneumatic Knife with Offset Blade 164-R1511 or equivalent |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Dow Urethane Adhesive Betaseal™ Express |
- |
| Dow Urethane One Step Glass Primer Betaprime™ 5500 / 5500A / 5500SA |
- |
| Sika Urethane Adhesive Sika Tack ASAP |
- |
| Sika Urethane Metal and Glass Primer Sika 206 G+P |
- |
| Ultra-Clear Spray Glass Cleaner ZC-23 |
ESR-M14P5-A |

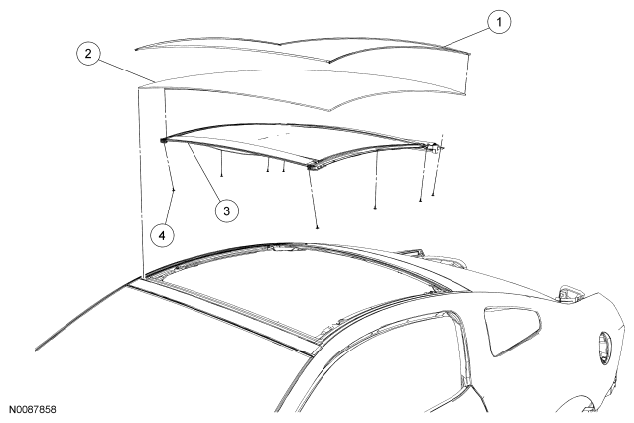

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Roof glass panel seal (part of roof glass panel) |
| 2 | 50054 | Roof glass panel |
| 3 | 519A02 | Roof glass shade assembly |
| 4 | - | Roof glass shade assembly screw (8 required) (part of roof glass shade assembly) |
