Transmission Fluid Cooler: Removal

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the 8 pin-type retainers and the upper air deflector.
    G07488474
  2. Remove the Air Cleaner (ACL) assembly, the ACL outlet pipe and the ACL inlet pipe. Refer to INTAKE AIR DISTRIBUTION & FILTERING .
  3. Remove the 2 bolts and position the degas bottle aside.
    G07488475
  4. Disconnect the cooling fan electrical connector.
    G08644792
  5. Remove the 4 bolts and the upper radiator support brackets.
    G07488477
  6. Remove the 2 A/C condenser bolts.
    G07488478
  7. With the vehicle in NEUTRAL, position it on a hoist. Refer to JACKING & LIFTING .
  8. Remove the 3 bolts and lower the underbody shield.
    G07488443
  9. Remove the 13 screws and the lower radiator sight shield.
    G07488444
  10. Remove the 2 nuts and position the A/C condenser forward.
    G07488481
  11. Remove both transmission fluid cooler tube quick connect secondary latches.
    G08644764

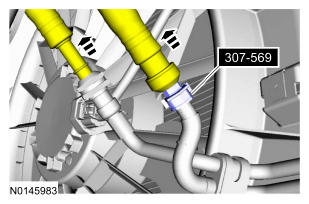

  12. Using the Transmission Cooler Line Disconnect Tool, disconnect the transmission cooler tube assemblies.
    G08644765
  13. Remove the transmission fluid cooler tube-to-fan shroud bolt.
    G07488484
  14. Remove the 2 transmission fluid cooler screws.
    G07488485
  15. Lift and remove the transmission fluid cooler from the retaining pockets.
    G07488486
