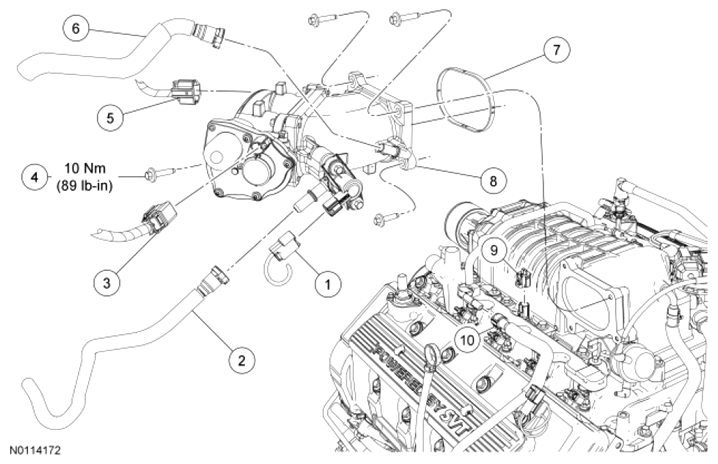

Throttle Body and Spacer Assembly
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Evaporative Emission (EVAP) canister purge valve electrical connector (part of 12B637) |
| 2 | 9G271 | EVAP canister purge valve vapor tube-to-Throttle Body (TB) spacer quick connect coupling |
| 3 | 14A464 | Electronic throttle control electrical connector (part of 12B637) |
| 4 | N806154 | TB spacer bolt (4 required) |
| 5 | 14A464 | Throttle Position (TP) sensor electrical connector (part of 12B637) |
| 6 | 2B432 | Brake booster-to-TB spacer quick connect coupling |
| 7 | 9L437 | TB spacer-to-Supercharger (SC) gasket |
| 8 | 9E822 | TB spacer assembly |
| 9 | 14A464 | Intake Air Temperature 2 (IAT2) sensor electrical connector (part of 12B637) |
| 10 | 9J280 | Fuel supply tube-to-fuel rail quick connect coupling |
