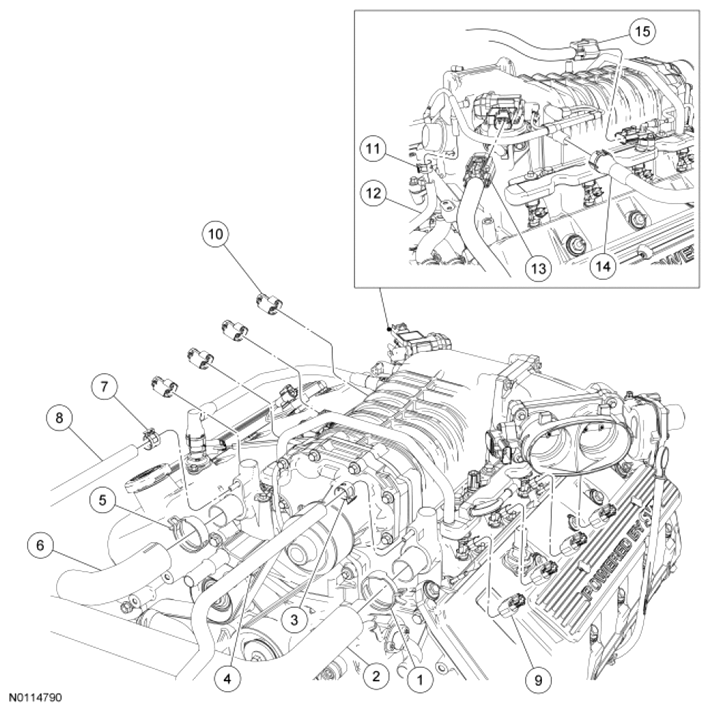

Coolant Hoses and Electrical Connectors
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 15161 | Upper radiator hose clamp |
| 2 | 8A586 | Upper radiator hose |
| 3 | W527352 | Coolant vent hose clamp |
| 4 | 8276 | Coolant vent hose |
| 5 | 15161 | Upper radiator hose clamp |
| 6 | 8A586 | Upper radiator hose |
| 7 | W527352 | Coolant vent hose clamp |
| 8 | 8276 | Coolant vent hose |
| 9 | 14A464 | LH fuel injector electrical connector (4 required) (part of 12B637) |
| 10 | 14A464 | RH fuel injector electrical connector (4 required) (part of 12B637) |
| 11 | W527352 | Supercharger (SC) bubbler hose clamp (part of 6C324) |
| 12 | 6C324 | SC bubbler hose |
| 13 | 14A464 | EGR system module electrical connector (part of 12B637) |
| 14 | 6K817 | Crankcase ventilation tube |
| 15 | 14A464 | Fuel rail pressure and temperature sensor electrical connector (part of 12B637) |
