Engine - Manual Transmission

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS

G08641539
 Heavy Duty Floor Crane
014-00071 or equivalent
G06126494
 Lifting Bracket, Engine
303-F047 (014-00073) or equivalent
G06068086
 Support Bar, Engine
303-F072
WARNING: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
WARNING: Before working on or disconnecting any of the fuel tubes or fuel system components, relieve the fuel system pressure to prevent accidental spraying of fuel. Fuel in the fuel system remains under high pressure, even when the engine is not running. Failure to follow this instruction may result in serious personal injury.
WARNING: Do not breathe dust or use compressed air to blow dust from storage containers or friction components. Remove dust using government-approved techniques. Friction component dust may be a cancer and lung disease hazard. Exposure to potentially hazardous components may occur if dusts are created during repair of friction components, such as brake pads and clutch discs. Exposure may also cause irritation to skin, eyes and respiratory tract, and may cause allergic reactions and/or may lead to other chronic health effects. If irritation persists, seek medical attention or advice. Failure to follow these instructions may result in serious personal injury.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Release the fuel system pressure. For additional information, refer to FUEL SYSTEM - GENERAL INFORMATION .
  3. Drain the engine cooling system. For additional information, refer to ENGINE COOLING SYSTEM -- MUSTANG .
  4. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  5. Remove the 2 steering column dash boot nuts.
    Fig 1: Locating Steering Column Dash Boot Nuts
    G06394907Courtesy of FORD MOTOR CO.
  6. NOTE: Use a steering wheel holding device (such as Hunter® 28-75-1 or equivalent).

    Using a suitable holding device, hold the steering wheel in the straight-ahead position.

    Fig 2: Holding Steering Wheel Using Suitable Holding Device
    G06063988Courtesy of FORD MOTOR CO.
  7. Release the 2 windshield washer hose retainers and the 8 hood insulation pin-type retainers (2 shown in illustration).
    G07474438
  8. Detach the 2 windshield washer hose retainers and disconnect the 2 windshield washer hose C-Lock Couplers. For additional information, refer to WIPERS AND WASHERS .
    G07474439
  9. NOTE: Index-mark the hood hinge location to aid in hood installation.
    NOTE: RH shown in illustration, LH similar.

    Remove the 4 bolts (2 shown in illustration) and the hood.

    G07474440
  10. NOTE: Base 5.0 L (4V) shown in illustration, Boss® 302 similar.

    If equipped, remove the 4 nuts and the strut tower cross brace.

    Fig 3: Locating Strut Tower Cross Brace And Nuts
    G07473993Courtesy of FORD MOTOR CO.
  11. NOTE: The engine appearance cover rubber grommets may remain on the cover. If so, remove the grommets from the cover and install them on the intake manifold before installing the cover.

    If equipped, remove the engine appearance cover.

    Fig 4: Locating Engine Appearance Cover
    G07473994Courtesy of FORD MOTOR CO.
  12. Remove the 2 LH cowl vent screen plastic rivets.
    G07487023
  13. Lift the cowl screen and remove the bolt and ground strap.
    • Detach the wiring harness retainer from the cowl.
      G07487024
  14. NOTE: It is not necessary to separate the Air Cleaner (ACL) outlet pipe and the ACL, the 2 components can be removed as an assembly.

    Remove the ACL outlet pipe and the ACL. For additional information, refer to the INTAKE AIR DISTRIBUTION SYSTEM & INTAKE AIR FILTERING SYSTEM -- MUSTANG .

  15. Detach the sound enhancement pipe retainer and position the pipe aside.
    Fig 5: Locating Sound Enhancement Pipe Retainer
    G07474445Courtesy of FORD MOTOR CO.
  16. Remove the 8 pin-type retainers and the upper radiator sight shield.
    Fig 6: Locating Upper Radiator Sight Shield And Pin-Type Retainers
    G06403276Courtesy of FORD MOTOR CO.
  17. Remove the degas bottle. For additional information, refer to ENGINE COOLING .
  18. Remove the intake manifold. For additional information, refer to INTAKE MANIFOLD .
  19. NOTE: Base 5.0 L (4V) shown in illustration, Boss® 302 similar.

    Detach the fuel supply tube from the retainer clip on the LH valve cover.

    Fig 7: Locating LH Valve Cover Fuel Supply Tube And Retainer Clip
    G07474447Courtesy of FORD MOTOR CO.
  20. If equipped, detach the Evaporative Emission (EVAP) tube from the LH valve cover and the LH inner fender.
    Fig 8: Locating Evaporative Emission Tube, LH Valve Cover And LH Inner Fender
    G07474448Courtesy of FORD MOTOR CO.
  21. Remove the battery tray. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  22. Remove the ACL inlet pipe.
    Fig 9: Locating ACL Inlet Pipe
    G07474449Courtesy of FORD MOTOR CO.
  23. Remove the spring clip, the clamp and disconnect the coolant bypass T assembly from the engine.
    Fig 10: Locating Coolant Bypass T Assembly, Spring Clip And Clamp
    G07474450Courtesy of FORD MOTOR CO.
  24. Disconnect the lower radiator hose from the engine.
    Fig 11: Locating Lower Radiator Hose Clamp
    G07474451Courtesy of FORD MOTOR CO.
  25. Disconnect the 2 heater hose quick connect couplings from the heater core. For additional information, refer to CLIMATE CONTROL SYSTEM - GENERAL INFORMATION AND DIAGNOSTICS .
    Fig 12: Locating Heater Hose Quick Connect Couplings And Heater Core
    G07474452Courtesy of FORD MOTOR CO.
  26. Disconnect the engine cooling fan electrical connector.
    Fig 13: Locating Engine Cooling Fan Electrical Connector
    G07474453Courtesy of FORD MOTOR CO.
  27. Remove the bolt, the stud bolt and the engine cooling fan assembly.
    Fig 14: Locating Engine Cooling Fan Assembly Bolt And Stud Bolt
    G07474454Courtesy of FORD MOTOR CO.
  28. NOTE: Protective rubber cover removed from graphic for clarity.

    Position aside the protective rubber cover and remove the nut, the B+ cable and the electrical connector from the generator.

    Fig 15: Locating B+ Cable, Electrical Connector And Nut
    G07474455Courtesy of FORD MOTOR CO.
  29. NOTE: Support the H-pipe with a length of mechanics wire. Do not bend, twist or allow the exhaust side pipes to hang from the flexible bellows or damage to the exhaust side pipe may occur.

    Remove the RH and LH catalytic converters. For additional information, refer to EXHAUST SYSTEM .

  30. NOTE: RH shown in illustration, LH similar.

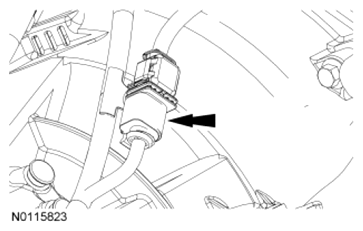

    Disconnect the RH and LH Heated Oxygen Sensor (HO2S) electrical connectors.

    Fig 16: Locating Heated Oxygen Sensor Electrical Connectors
    G07474457Courtesy of FORD MOTOR CO.
  31. Remove the starter motor. For additional information, refer to STARTING SYSTEM .
  32. Remove the 3 bolts and lower the underbody shield.
    G07474057
  33. If equipped, disconnect the 2 coolant hose quick connect couplings from the oil cooler. For additional information, refer to CLIMATE CONTROL SYSTEM - GENERAL INFORMATION AND DIAGNOSTICS .
    G07988200
  34. Remove the oil pan drain plug and drain the engine oil.
    • Install the drain plug and tighten to 26 Nm (19 lb-ft).
  35. Remove the 2 nuts and detach the wiring harness retainers from the LH side of the oil pan and the front oil pan stud bolts.
    Fig 17: Locating Front Oil Pan Stud Bolts And Wiring Harness Retainer
    G07474463Courtesy of FORD MOTOR CO.
  36. Disconnect the middle PCM electrical connector, the 16 pin electrical connector and detach the wiring harness retainers from the PCM bracket.
    Fig 18: Locating Middle PCM Electrical Connector, 16 Pin Electrical Connector And Wiring Harness Retainers
    G07474464Courtesy of FORD MOTOR CO.
  37. Remove the accessory drive belt. For additional information, refer to ACCESSORY DRIVE .
  38. Cut and discard the A/C belt.
    Fig 19: Locating A/C Belt
    G07474465Courtesy of FORD MOTOR CO.
  39. Remove the top transmission-to-engine bolt and stud bolt.
    Fig 20: Locating Top Transmission-To-Engine Bolt And Stud Bolt
    G07474466Courtesy of FORD MOTOR CO.
  40. Install the Engine Lifting Bracket.
    Fig 21: Identifying Engine Lifting Bracket
    G07474467Courtesy of FORD MOTOR CO.
  41. NOTE: Do not position the legs of the Engine Support Bar on the fenders. Instead, the legs should be positioned on the body structure near the suspension strut tower. Failure to follow these instructions may result in body damage.

    Install the Engine Support Bar.

    • Attach the Engine Support Bar to the through bolt on the Engine Lifting Bracket.
      Fig 22: Identifying Engine Support Bar
      G07474468Courtesy of FORD MOTOR CO.
  42. NOTE: RH shown in illustration, LH similar.

    Remove the RH and LH engine support insulator nuts.

    Fig 23: Locating Engine Support Insulator Nut
    G06392444Courtesy of FORD MOTOR CO.
  43. Using the Engine Support Bar, raise the engine 25 mm (0.984 in).
    Fig 24: Identifying Engine Support Bar
    G07474468Courtesy of FORD MOTOR CO.
  44. Detach the wiring harness retainers from the RH side of the oil pan and the RH engine support insulator bracket stud bolt.
    Fig 25: Locating Wiring Harness Retainers
    G07474218Courtesy of FORD MOTOR CO.
  45. Detach the wiring harness retainers from A/C compressor stud bolt and the RH side of the oil pan.
    Fig 26: Locating A/C Compressor Stud Bolt And Wiring Harness Retainers
    G07474269Courtesy of FORD MOTOR CO.
  46. Remove the nut and ground strap from the RH engine support insulator bracket.
    Fig 27: Locating RH Engine Support Insulator Bracket Nut And Ground Strap
    G07474219Courtesy of FORD MOTOR CO.
  47. NOTE: The RH engine support insulator has been removed from the graphic for clarity.

    Remove the 2 bolts, the 2 stud bolts and the RH engine support insulator bracket.

    Fig 28: Locating RH Engine Support Insulator Bracket, Bolts And Stud Bolts
    G07474220Courtesy of FORD MOTOR CO.
  48. Remove the bolt and position the steering intermediate shaft aside.
    Fig 29: Locating Steering Intermediate Shaft And Bolt
    G07474475Courtesy of FORD MOTOR CO.
  49. NOTE: The LH engine support insulator has been removed from the graphic for clarity.

    Remove the 3 bolts, the stud bolt and the LH engine support insulator bracket.

    Fig 30: Locating LH Engine Support Insulator Bracket, Stud Bolt And Bolts
    G07474476Courtesy of FORD MOTOR CO.
  50. Remove the 3 stud bolts and position the A/C compressor aside.
    Fig 31: Locating A/C Compressor Stud Bolts
    G07474477Courtesy of FORD MOTOR CO.
  51. Remove the 2 separator plate bolts.
    Fig 32: Locating Separator Plate Bolts
    G07474478Courtesy of FORD MOTOR CO.
  52. Remove 3 LH transmission-to-engine bolts.
    Fig 33: Locating LH Transmission-To-Engine Bolts
    G07474479Courtesy of FORD MOTOR CO.
  53. Remove RH transmission-to-engine bolt.
    Fig 34: Locating RH Transmission-To-Engine Bolt
    G07474480Courtesy of FORD MOTOR CO.
  54. Loosely install the 3 underbody shield bolts.
    G07474057
  55. Attach the Engine Crane to the Engine Lifting Bracket.
    • Once the engine is supported by the Engine Crane, remove the Engine Support Bar.
      Fig 35: Removing Engine Support Bar Using Engine Crane
      G08641584Courtesy of FORD MOTOR CO.
  56. NOTE: Do not support the transmission by the fluid pan, failure to follow this instruction may result in serious damage to the transmission.

    Support the bellhousing of the transmission with a suitable floor jack and a block of wood.

  57. Remove the remaining transmission-to-engine stud bolt.
    Fig 36: Locating Transmission-To-Engine Stud Bolt
    G07474483Courtesy of FORD MOTOR CO.
  58. Using the Engine Crane, separate the engine from the transmission and remove the engine from the vehicle.
    Fig 37: Removing/Installing Engine Using Special Tools
    G07474484Courtesy of FORD MOTOR CO.
