Oil Cooler: Installation

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

Using a new gasket, install the oil cooler and threaded fitting.
- Tighten to 58 Nm (43 lb-ft).
Connect the 2 coolant hose quick connect couplings to the oil cooler. For additional information, refer to CLIMATE CONTROL SYSTEM - GENERAL INFORMATION AND DIAGNOSTICS .
NOTE: Do not lubricate the O-ring seal.

Install a new oil filter.
- Tighten to 16 Nm (142 lb-in).

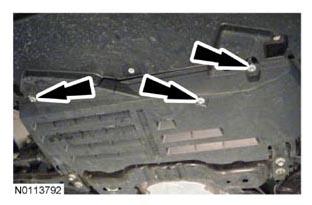

Position the underbody shield and install the 3 bolts.
- Tighten to 10 Nm (89 lb-in).
Fill and bleed the engine cooling system. For additional information, refer to ENGINE COOLING .
