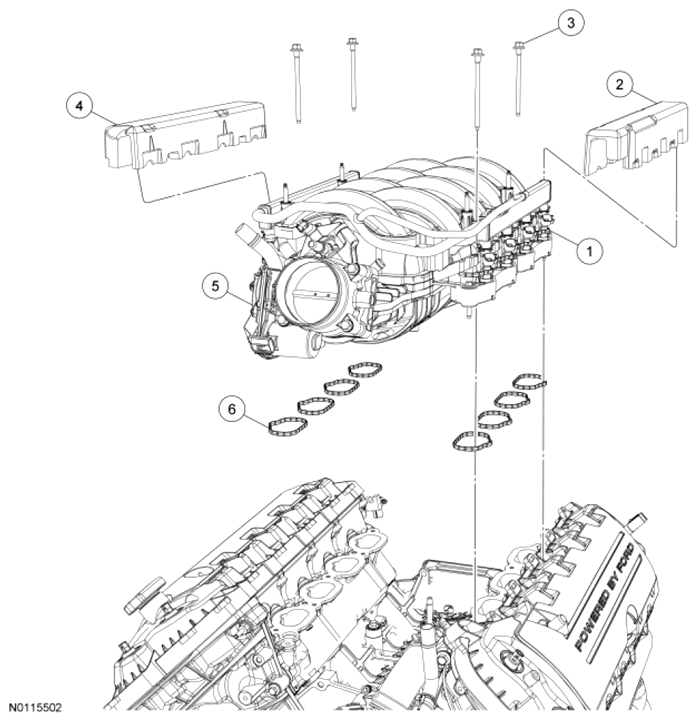

Fuel Rail Insulators, Intake Manifold and Gaskets: Notes
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
9Y450 |
Intake manifold bolt (part of 9424) (6 required) |
| 2 |
6P013 |
LH fuel rail insulator |
| 3 |
W714864 |
Fuel rail bolt (4 required) |
| 4 |
6P013 |
RH fuel rail insulator |
| 5 |
9424 |
Intake manifold |
| 6 |
9439 |
Intake manifold gasket |
