Fuel Rail Insulators, Intake Manifold and Gaskets: Notes

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

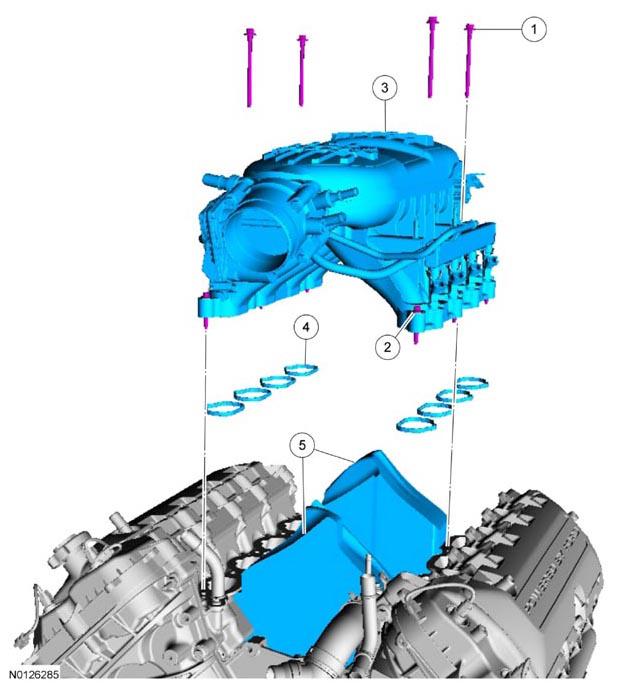

G07987706
Item Part Number Description
1 W714864 Fuel rail bolt (4 required)
2 9Y450 Intake manifold bolt (part of 9424) (6 required)
3 9424 Intake manifold
4 9439 Intake manifold gasket
5 9U550 Insulator (2 required)
