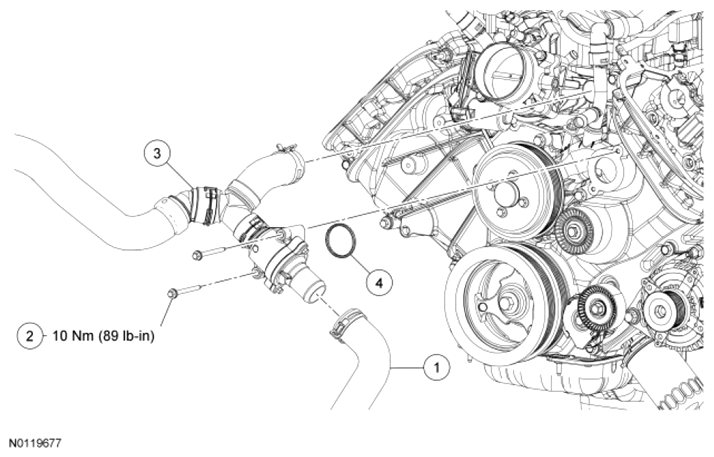

Engine Front Cover (View 1 of 4)
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
8286 |
Lower radiator hose |
| 2 |
W713197 |
Thermostat housing bolt (2 required) |
| 3 |
8A586 |
Upper radiator hose T-connector/thermostat housing assembly |
| 4 |
8255 |
Thermostat housing O-ring seal |
