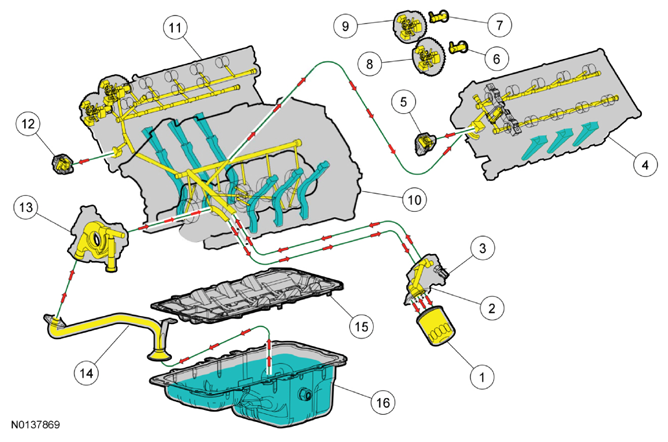

Engine Assembly - Except Boss® 302
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6714 | Oil filter |
| 2 | 6881 | Oil filter adapter |
| 3 | 9278 | EOP switch |
| 4 | 6050 | Cylinder head - LH |
| 5 | 6L266 | Timing chain tensioner - LH |
| 6 | 6A272/6A273 | Exhaust camshaft |
| 7 | 6A270/6A271 | Intake camshaft |
| 8 | 5C524 | Exhaust camshaft VCT |
| 9 | 5C525 | Intake camshaft VCT |
| 10 | 6010 | Cylinder block |
| 11 | 6049 | Cylinder head - RH |
| 12 | 6L266 | Timing chain tensioner - RH |
| 13 | 6621 | Oil pump |
| 14 | 6622 | Oil pump screen and pickup tube |
| 15 | 6C878 | Oil pan baffle and gasket |
| 16 | 6675 | Oil pan |
