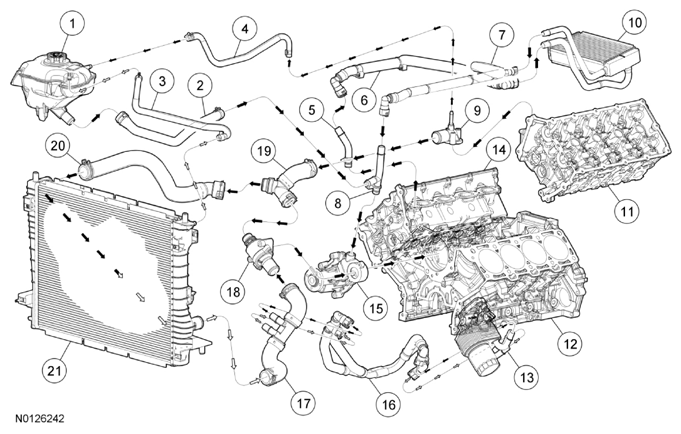

5.0L with Engine Oil Cooler
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Black arrows indicate hot, white arrows indicate cold.
| Item | Part Number | Description |
|---|---|---|
| 1 | 8A080 | Degas bottle |
| 2 | 8K276 | Degas bottle-to-engine hose |
| 3 | 8276 | Radiator-to-degas bottle hose |
| 4 | 8276 | Coolant outlet connector-to-degas bottle hose |
| 5 | 18696 | Heater inlet tube |
| 6 | 18K579 | Heater inlet hose |
| 7 | 18K580 | Heater outlet hose |
| 8 | 18663 | Heater outlet tube |
| 9 | 8594 | Coolant outlet connector |
| 10 | 18B539 | Heater core |
| 11 | 6050 | LH cylinder head |
| 12 | 6010 | Cylinder block |
| 13 | 6A642 | Engine oil cooler |
| 14 | 6049 | RH cylinder head |
| 15 | 8501 | Coolant pump |
| 16 | 6N866 | Lower radiator hose-to-oil cooler hose assembly |
| 17 | 8B273 | Lower radiator hose |
| 18 | 8A586 | Thermostat housing |
| 19 | 8566 | Coolant bypass T assembly |
| 20 | 8B274 | Upper radiator hose |
| 21 | 8005 | Radiator |
