Valve Spring, Retainer and Seal: Installation

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: Lubricate the valve stem seal with clean engine oil prior to installation.

    Using the Valve Stem Oil Seal Installer, install a new valve stem seal.

    Fig 1: Installing Valve Stem Seal
    G07958749Courtesy of FORD MOTOR CO.
  2. Using the Valve Spring Compressors, install the valve spring, retainer and key.

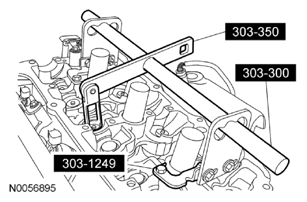

    Fig 2: Installing/Removing Valve Spring, Retainer And Key Using Valve Spring Compressors
    G08640244Courtesy of FORD MOTOR CO.
  3. Install the valve tappets. For additional information, refer to VALVE TAPPETS .
