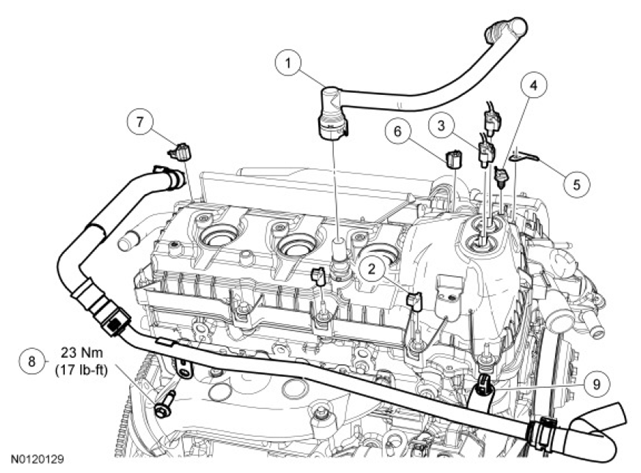

Valve Cover - RH (View 1 of 2)
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6A664 | PCV tube |
| 2 | - | RH valve cover stud bolt wiring harness retainer (part of 12C508) (2 required) |
| 3 | - | RH Variable Camshaft Timing (VCT) electrical connector (part of 12C508) (2 required) |
| 4 | - | RH valve cover wiring harness pin-type retainer (part of 12C508) |
| 5 | - | RH valve cover stud bolt wiring harness retainer (part of 12C508) |
| 6 | - | RH valve cover stud bolt wiring harness retainer (part of 12C508) |
| 7 | - | RH valve cover stud bolt wiring harness retainer (part of 12C508) |
| 8 | W712679 | Heater tube bolt |
| 9 | - | Heater tube-to-valve cover stud bolt retainer (part of 18B402) |
