Oil Pump: Installation

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the oil pump and the 3 bolts.
    • Tighten to 10 Nm (89 lb-in).
      Fig 1: Locating Bolts And Oil Pump
      G06062564Courtesy of FORD MOTOR CO.
  2. Using a new O-ring seal, install the oil pump screen and pickup tube and the 3 bolts.
    • Tighten to 10 Nm (89 lb-in).
      G07958859
  3. Install the crankshaft timing chain sprocket.
    G07986673
  4. NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.
    NOTE: The oil pan and the 4 specified bolts must be installed and the oil pan aligned to the cylinder block within 4 minutes of sealant application. Final tightening of the oil pan bolts must be carried out within 60 minutes of sealant application.

    Apply a 3 mm (0.11 in) bead of Motorcraft® High Performance Engine RTV Silicone to the sealing surface of the oil pan-to-engine block mating surface.

    G07987002
  5. Apply a 5.5 mm (0.21 in) bead of Motorcraft® High Performance Engine RTV Silicone to the 2 crankshaft seal retainer plate-to-cylinder block joint areas on the sealing surface of the oil pan.
    G07958811
  6. NOTE: The oil pan and the 4 specified bolts must be installed within 4 minutes of the start of sealant application.

    Install the oil pan and bolts 10, 11, 13 and 14 finger tight.

    Fig 2: Identifying Oil Pan Bolts Tightening Sequence
    G07958812Courtesy of FORD MOTOR CO.
  7. NOTE: The automatic transmission has one more bottom bellhousing-to-oil pan bolt than the manual transmission.
    NOTE: Automatic transmission shown in illustration, manual transmission similar.

    Install and tighten the 2 LH bellhousing-to-oil pan bolts.

    • Do not torque at this time.
      G07958803
  8. Install and tighten the RH oil pan-to-bellhousing bolt.
    • Do not torque at this time.
      G07958801

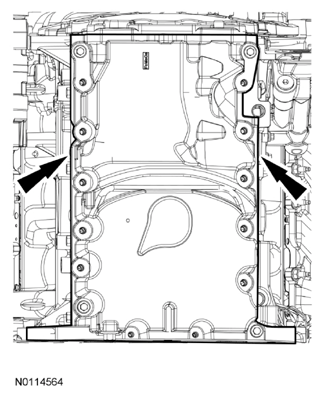

  9. Laterally align the oil pan to the block. Make sure the oil pan is flush with the block at these 2 points.
    Fig 3: Aligning Oil Pan To Block
    G08640411Courtesy of FORD MOTOR CO.
  10. Tighten bolts 10, 11, 13 and 14 in the sequence shown in illustration to 3 Nm (27 lb-in).
    Fig 4: Identifying Oil Pan Bolts Tightening Sequence
    G07958812Courtesy of FORD MOTOR CO.
  11. Install the remaining oil pan bolts and tighten in the sequence shown in illustration.
    • Tighten bolts 1-9 and 11-14 to 20 Nm (177 lb-in), then rotate an additional 45 degrees.
    • Tighten bolts 15 and 16 to 10 Nm (89 lb-in), then rotate an additional 45 degrees.
    • Tighten bolt 10 to 20 Nm (177 lb-in), then rotate an additional 90 degrees.
      Fig 5: Identifying Oil Pan Bolts Tightening Sequence
      G07958820Courtesy of FORD MOTOR CO.
  12. NOTE: The automatic transmission has one more bottom bellhousing-to-oil pan bolt.

    Tighten the 2 LH bellhousing-to-oil pan bolts to 48 Nm (35 lb-ft).

    G07958803
  13. Tighten the RH oil pan-to-bellhousing bolt to 48 Nm (35 lb-ft).
    G07958801
  14. NOTE: RH shown in illustration, LH similar.

    Using the adjustable jackstand, raise the subframe and install the 4 front subframe nuts finger tight.

    G07489679
  15. NOTE: RH shown in illustration, LH similar.

    Align the subframe and install the 4 rear subframe bolts with the reference marks made during removal.

    • Tighten to 115 Nm (85 lb-ft).
      G07489677
  16. NOTE: RH shown in illustration, LH similar.

    Tighten the 4 front subframe nuts to 115 Nm (85 lb-ft).

    G07489679
  17. Connect the steering shaft and install the steering shaft pinch bolt.
    • Tighten to 47 Nm (35 lb-ft).
      G07489676
  18. Connect the 2 EPAS electrical connectors.
    G07487033
  19. Attach the 2 EPAS wiring harness pin-type retainers.
    G07489675
  20. Install the RH radiator support bracket and the 2 bolts.
    • Tighten to 10 Nm (89 lb-in).
      G07489668
  21. Install the radiator sight shield and the 8 pin-type retainers.
    Fig 6: Locating Radiator Sight Shield Pin-Type Retainers
    G06403276Courtesy of FORD MOTOR CO.
  22. NOTE: It may be necessary to rotate the camshafts slightly, to align the timing marks.

    Install the primary timing chain with the colored links aligned with the timing marks on the VCT assemblies and the crankshaft sprocket.

    Fig 7: Locating Timing Marks On VCT Assemblies And Crankshaft Sprocket
    G07399074Courtesy of FORD MOTOR CO.
  23. Install the lower LH primary timing chain guide and the 2 bolts.
    • Tighten to 10 Nm (89 lb-in).
      G07986669
  24. Install the primary timing chain tensioner arm.
    G07986668
  25. Reset the primary timing chain tensioner.
    • Release the ratchet detent.
    • Using a soft-jawed vise, compress the ratchet plunger.
    • Align the hole in the ratchet plunger with the hole in the tensioner housing.
    • Install a suitable lockpin.
      G07399077
  26. NOTE: It may be necessary to rotate the camshafts slightly to remove slack from the timing chain to install the tensioner.

    Install the primary timing chain tensioner and the 2 bolts.

    • Tighten to 10 Nm (89 lb-in).
    • Remove the lockpin.
      G07986723
  27. As a post-check, verify correct alignment of all timing marks.
    • There is 48 links in between the RH intake VCT assembly colored link (1) and the LH intake VCT assembly colored link (2).
    • There is 35 links in between LH intake VCT assembly colored link (2) and the 2 crankshaft sprocket links (3).
      G07986724
  28. NOTE: Do not use excessive force when installing the Variable Camshaft Timing (VCT) oil control solenoid. Damage to the mega cap could cause the cylinder head to be inoperable. If difficult to install the VCT oil control solenoid, inspect the bore and VCT oil control solenoid to ensure there are no burrs, sharp edges or contaminants present on the mating surface. Only clean the external surfaces as necessary.
    NOTE: A slight twisting motion will aid in the installation of the VCT oil control solenoid.
    NOTE: Keep the VCT oil control solenoid clean of dirt and debris.

    Install the LH intake VCT oil control solenoid and the bolt.

    • Tighten to 8 Nm (71 lb-in) then an additional 20 degrees.
      G07399059
  29. NOTE: Do not use excessive force when installing the Variable Camshaft Timing (VCT) oil control solenoid. Damage to the mega cap could cause the cylinder head to be inoperable. If difficult to install the VCT oil control solenoid, inspect the bore and VCT oil control solenoid to ensure there are no burrs, sharp edges or contaminants present on the mating surface. Only clean the external surfaces as necessary.
    NOTE: A slight twisting motion will aid in the installation of the VCT oil control solenoid.
    NOTE: Keep the VCT oil control solenoid clean of dirt and debris.

    Install the RH intake VCT oil control solenoid and the bolt.

    • Tighten to 8 Nm (71 lb-in) then an additional 20 degrees.
      G07399060
  30. Remove the Camshaft Holding Tool.
    G07399052
  31. Install the RH valve train oil tube and the 3 bolts and tighten in 2 stages.
    • Stage 1: Tighten to 8 Nm (71 lb-in).
    • Stage 2: Tighten an additional 45 degrees.
      G07399051
  32. Remove the Camshaft Holding Tool.
    G07399050
  33. Install the LH valve train oil tube and the 3 bolts and tighten in 2 stages.
    • Stage 1: Tighten to 8 Nm (71 lb-in).
    • Stage 2: Tighten an additional 45 degrees.
      G07399049
  34. Install the engine front cover. For additional information, refer to ENGINE FRONT COVER .
  35. NOTE: Do not lubricate the engine oil filter gasket.

    Install a new engine oil filter.

    • Tighten to 5 Nm (44 lb-in) and then rotate an additional 180 degrees.
      G07986902
  36. NOTE: RH shown in illustration, LH similar.

    Install the front crossmember brace and the 4 nuts (2 shown in illustration).

    • Tighten to 48 Nm (35 lb-ft).
      G07474214
  37. NOTE: RH shown in illustration, LH similar.

    Install the crossmember brace and the 6 bolts (2 shown in illustration).

    • Tighten to 65 Nm (48 lb-ft).
      G07489674
  38. NOTE: RH shown in illustration, LH similar.

    Tighten the 2 nuts for the crossmember brace to 65 Nm (48 lb-ft).

    G07489673
  39. Install the lower air deflector and the 9 bolts.
    • Tighten to 5 Nm (44 lb-in).
      G07489670
  40. NOTE: RH shown in illustration, LH similar.

    Install the RH and LH engine mount bracket-to-engine mount nuts.

    • Tighten to 63 Nm (46 lb-ft).
      G07489663
  41. Install the 2 steering column dash boot bearing nuts.
    • Tighten to 9 Nm (80 lb-in).
      Fig 8: Locating Steering Column Dash Boot Bearing Nuts
      G06394907Courtesy of FORD MOTOR CO.
  42. Fill the engine with clean engine oil.
  43. Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
