RH Ignition Components
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

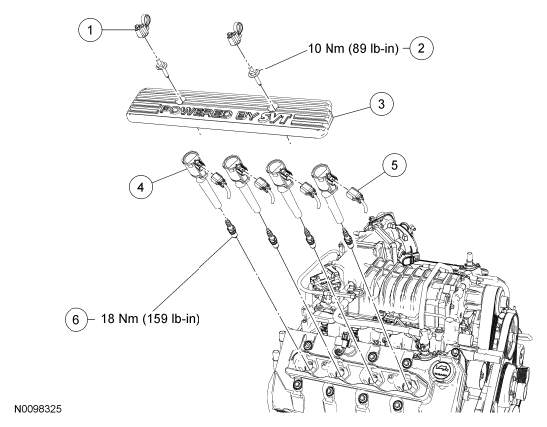

| Item | Part Number | Description |
|---|---|---|
| 1 | W706827 | Wire harness retainer (part of 12B637) (2 required) |
| 2 | W712595 | Ignition coil-on-plug cover stud bolt (2 required) |
| 3 | 6P068 | Ignition coil-on-plug cover |
| 4 | 12A366 | Ignition coil-on-plug (4 required) |
| 5 | 14A464 | Ignition coil-on-plug electrical connector (part of 12B637) (4 required) |
| 6 | 12405 | Spark plug (4 required) |
- For additional information, refer to the appropriate procedures.
