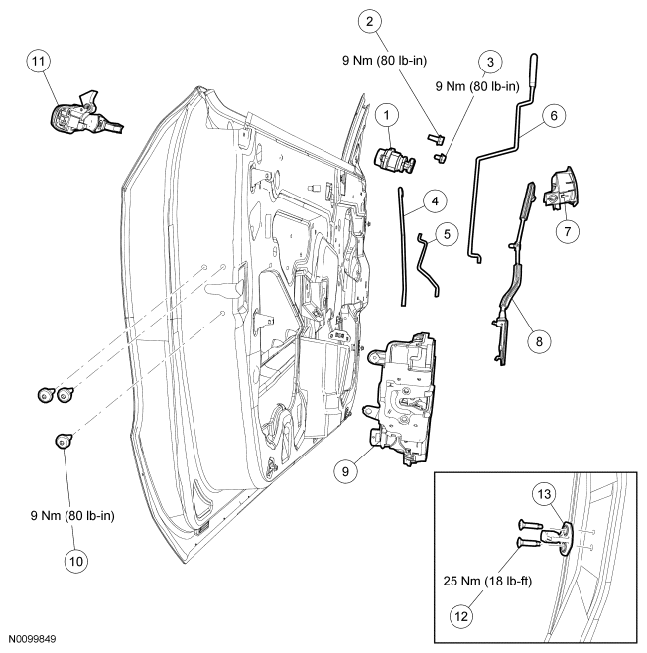

Front Door Handles, Locks and Latches - Exploded View
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH door shown in illustration, RH door similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 5421991 | Door lock cylinder (driver door only) |
| 2 | W709891 | Door lock cylinder bolt (driver door only) |
| 3 | W714939 | Exterior door handle bolts (1 required LH door/2 required RH door) |
| 4 | 6322153/6322152 | Exterior door handle actuating rod (LH/RH) |
| 5 | 6322135 | Door lock cylinder actuating rod (driver door only) |
| 6 | 6321853/6321852 | Manual lock rod (LH/RH) |
| 7 | 6322601/6322600 | Interior door handle (LH/RH) |
| 8 | 63221A00 | Door latch release cable |
| 9 | 5421813/5421812 | Door latch (LH/RH) |
| 10 | W705830 | Door latch bolts (3 required) |
| 11 | 6322405/6322404 | Exterior door handle (LH/RH) |
| 12 | W711379 | Door latch striker bolts (2 required) |
| 13 | 6321982 | Door latch striker |
- For additional information, refer to the appropriate procedures.
