Steering Column Shaft - Upper: Notes

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

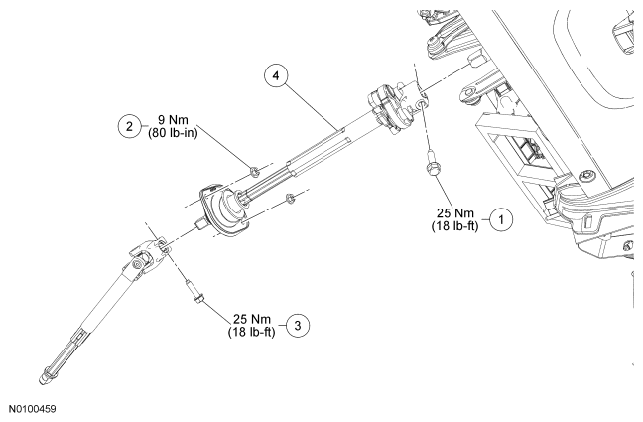

Fig 1: Upper Steering Column Shaft Replacement Components With Torque Specifications
G06382250Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W704980 Steering column shaft-to-steering column bolt
2 W707137 Dash boot bearing nut (2 required)
3 W704980 Lower steering column shaft-to-upper steering column shaft bolt
4 3E751 Upper steering column shaft
