Side Airbag: Removal
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Always carry a live airbag with the deployment door, trim cover or tear seam pointed away from the body. Do not place a live airbag down with the deployment door, trim cover or tear seam facing down. Failure to follow these instructions may result in serious personal injury in the event of an accidental deployment.
WARNING:
Never probe the electrical connectors on airbag, Safety Canopy or side air curtain assemblies. Failure to follow this instruction may result in the accidental deployment of these assemblies, which increases the risk of serious personal injury or death.
WARNING:
If the seat side airbag cover has been damaged or separated from its mounting, or if the airbag material has been exposed, install a new seat side airbag assembly. Never try to repair the seat side airbag assembly. Failure to follow these instructions may result in the seat side airbag deploying incorrectly, which increases the risk of serious personal injury or death in a crash.
WARNING:
Front seat backrest trim covers installed on seats equipped with seat side airbags cannot be repaired. A new trim cover must be installed. Cleaning is permissible. Failure to follow these instructions may result in the seat side airbag deploying incorrectly and increase the risk of serious personal injury or death in a crash.
NOTE:
If a side air bag deployment took place, install a new seat backrest foam pad, cover, side air bag module, nuts, and seat backrest frame (if necessary).
All vehicles
- Remove the front seat backrest. Refer to SEATING .
Vehicles with high-back seats
-
Vehicles with low-back seats
-
All vehicles
-

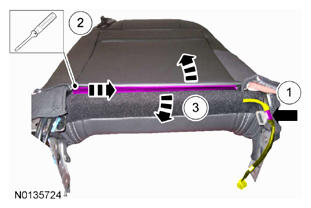

NOTE: Use care when separating the backrest cover from the hook-and-loop strips. The hook-and-loop strips can be torn from the backrest foam pad.
