Side Airbag: Installation

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

All seats

  1. WARNING: Inspect the seat side air bag, air bag cavity, mounting surface and deployment chute for damage or the presence of foreign material. Remove all foreign material. Install a new side air bag if it is damaged. Install a new seat backrest trim cover and deployment chute if the deployment chute is damaged. Position the deployment chute properly and make sure it is closed. Failure to follow these instructions may result in the seat side air bag deploying incorrectly and increase the risk of serious personal injury or death in a crash.
    • Tighten to 6 Nm (53 lb-in).
      G08647196
  2. NOTE: Feed any excess side air bag module wire harness and protective cover into the side air bag module shell. Failure to feed any excess wire harness and protective cover into the side air bag module shell can cause damage to the wire harness.
    G08647198
  3. G08647199
  4. WARNING: To correctly retain the backrest trim cover, always install 2 hog rings when attaching the backrest trim cover wire to the listing wire in each foam pad window. Failure to follow this instruction may result in the seat side air bag module deploying incorrectly and increases the risk of serious personal injury or death in a crash.

    General Equipment: Hog ring pliers.

    G08647200

    Vehicles with low-back seats

    1. -
    2. If equipped with heated seat.

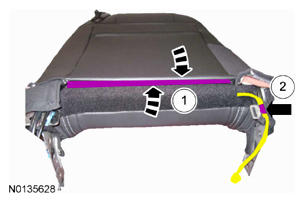

      G08647201

    Vehicles with high-back seats

  5. G08647202

    All vehicles

  6. G08647190
  7. Install the front seat backrest. Refer to SEATING .

    Passenger seat

  8. WARNING: Make sure the front passenger seat repair is complete, the seat and all attached components (head restraint, seat side shield, etc.) are correctly assembled, and the seat is correctly installed to the vehicle before using System Reset to rezero the seat weight. Failure to follow these instructions may result in incorrect operation of the occupant classification system (OCS) and increases the risk of serious personal injury or death in a crash.
    NOTE: To prevent system failure, the following precautions must be taken before carrying out the Occupant Classification System (OCS) reset:
    • Make sure the voltage to the OCS sensor is above 8 volts and less than 18 volts.
    • Make sure the OCS is not at a temperature below 6°C (42°F) or above 36°C (97°F) when initiating the OCS reset. If the vehicle has been exposed to extreme cold or hot temperatures, the vehicle must be exposed and kept at a temperature within the limits, 6°C to 36°C (42°F to 97°F) for a minimum of 30 minutes.
    • Make sure nothing is present on the passenger seat before carrying out the OCS reset and nothing is placed on the seat during the process.
    • Make sure a minimum 8-second time period has passed after cycling the ignition ON before carrying out the OCS reset.

    Carry out the OCCUPANT CLASSIFICATION SYSTEM (OCS) RESET .

  9. If the first system reset attempt was unsuccessful, make sure no Occupant Classification System Module (OCSM) DTCs are present. If DTC C1941 is the only one retrieved, it will clear upon a successful system reset. All other OCS DTCs must be diagnosed and repaired before carrying out the OCS reset.
  10. Carry out a thorough inspection of the following and repair any concerns found.
    • OCS connector and wiring for damage
    • Pressure sensor hose for kinks and/or damage
    • Seat-related wiring harness and body wiring harness terminals and connectors for damage
  11. Carry out a second OCS reset. If the system reset was unsuccessful, install a new OCS service kit. For additional information, refer to the Removal and Installation procedures in Occupant Classification Sensor .
  12. Prove out the SRS as follows:

    Turn the ignition from ON to OFF. Wait 10 seconds, then turn the ignition ON and monitor the air bag warning indicator with the air bag modules installed. The air bag warning indicator will light continuously for approximately 6 seconds and then turn off. If an air bag SRS fault is detected, the air bag warning indicator will:

    • fail to light.
    • remain lit continuously.
    • flash.

    The flashing might not occur until approximately 30 seconds after the ignition has been turned from the OFF to the ON position. This is the time required for the RCM to complete the testing of the SRS. If the air bag warning indicator is inoperative and a SRS fault exists, a chime will sound in a pattern of 5 sets of 5 beeps. If this occurs, the air bag warning indicator and any SRS fault discovered must be diagnosed and repaired.

    Clear all RCM and OCSM Continuous Memory Diagnostic Trouble Codes (CMDTCs).
