Passenger Airbag: Notes

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

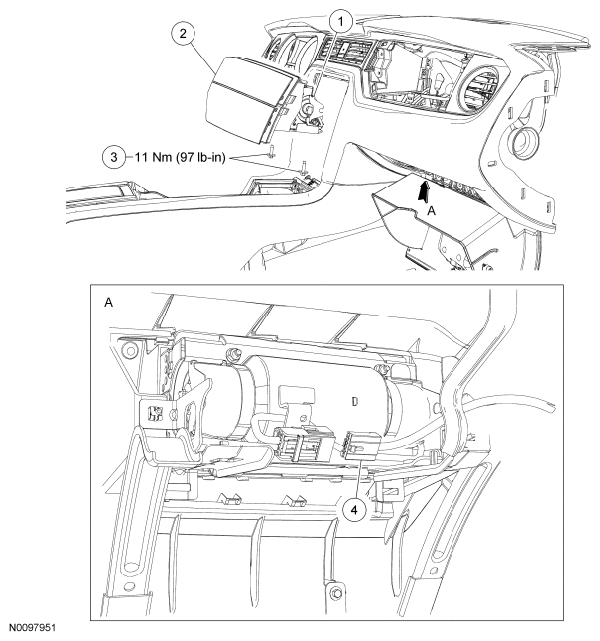

Fig 1: Passenger Air Bag Module Replacement Components With Torque Specifications
G06404211Courtesy of FORD MOTOR CO.
Item Part Number Description
1 044A74 Passenger air bag module assembly
2 04338 Air bag trim cover
3 W709783 Passenger air bag module bolts (2 required)
4 - Electrical connector (part of 14401)
