Brake Master Cylinder: Notes
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada) |
WSS-M6C62-A or WSS-M6C65-A1 |
NOTE:

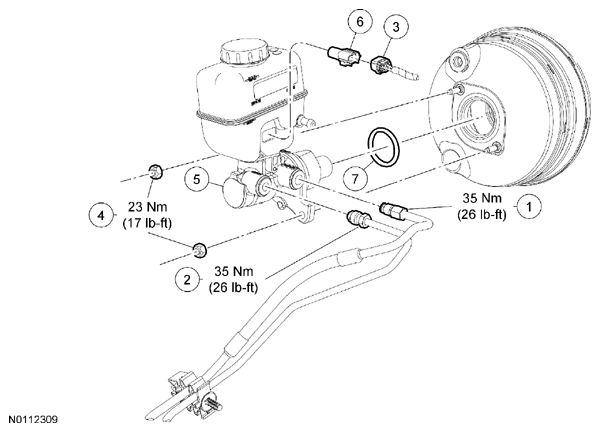

Manual transmission shown in illustration, automatic transmission similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Primary brake tube fitting (part of 2269) |
| 2 | - | Secondary brake tube fitting (part of 2269) |
| 3 | - | Brake fluid level sensor electrical connector (part of 14290) |
| 4 | W520011 | Brake master cylinder nuts (2 required) |
| 5 | 2140 | Brake master cylinder |
| 6 | 2C050 | Brake fluid level sensor |
| 7 | 2152 | Brake master cylinder O-ring seal |
